商品の詳細:
|
| 製品名: | 超音波厚さゲージ | モデル: | TG-4900DL |
|---|---|---|---|
| 言語: | 英語 | 測定範囲: | 0.15・3200mm |
| 決議: | X.X(0.1mm)、X.XX(0.01mm) X.XXX(0.001mm) | 調査インターフェイス: | デュアル LEMO-00C5 |
| ハイライト: | 単元超音波厚み計 双元超音波厚み計,Dual Element Ultrasonic Thickness Gauge |
||

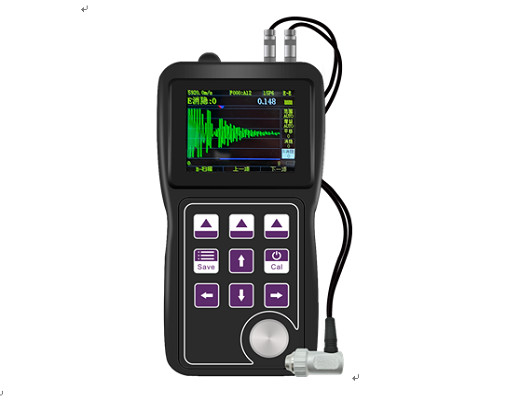

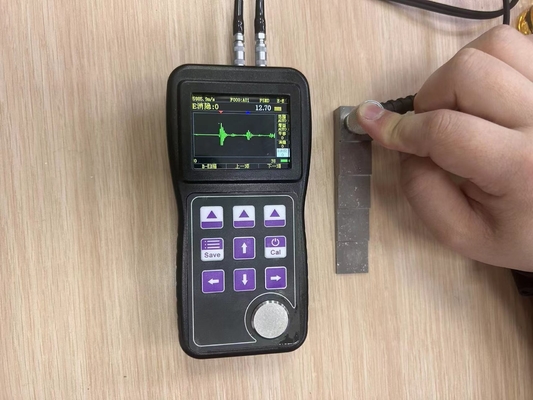

Ultrasonic Thickness Gauge Live A&B Scan Single & Dual Element Probe
TG-4900DL ultrasonic thickness gauge developed and produced by HUATEC Group adopts OLED color screen ,which has the functions of built-in A-scan snapshot and B-scan thickness function,thickness measurement through coating, large capacity data storage and so on. Based on the principle of ultrasonic measurement, it is a portable industrial nondestructive testing instrument with high precision and high resolution.
The instrument can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields. In addition to accurately measuring all kinds of plates and processed parts, it can also monitor all kinds of pipes and pressure vessels in production equipment to monitor their thinning degree after corrosion in the process of use. It is a necessary instrument in the nondestructive testing industry.
All models of this series of instruments are equipped with A-scan snapshot function as standard, which can help users better control the measurement and avoid
wrong measurement caused by the factors of the material itself. This thickness gauge has the function of measuring through the coating: when there is a coating or paint layer on the surface of the measured material, the actual thickness of the workpiece substrate can be obtained without grinding and damaging the surface coating of the workpiece.
Basic Parameters
| Bandwidth | 1MHz～20MHz |
| Receiving gain | 96dB,step pace1dB or 6dB |
| Filter | Broadband,5M,10M,15M |
| Update rate | 4Hz,8Hz,16Hz,24Hz |
| Resolution | X.X(0.1mm),X.XX(0.01mm)X.XXX(0.001mm) |
| Measuring range | 0.15～3200mm(Longitudinal wave carbon steel) |
| View mode | Normal, difference, maximum value capture |
| Detection mode | Full wave, positive half wave, negative half wave, RF, Invert to RF |
| Measurement mode | P-E(pulse-echo),E-E(echo-echo) |
| Calibration mode | Automatic zero point calibration, automatic sound velocity calibration |
| Data storage | 520 files can be saved, and each file can record 252 sets of thickness values |
| Auxiliary functions | Auto Gain, Auto Range, Auto Blanking E, Auto Freeze, Auto Shutdown (Hibernation),Buzzer alarm, upper computer communication |
| Probe interface | DUAL LEMO-00C5 |
| Probe type | single crystal,double crystal |
| Pulse mode | Square waves, two-sided waves |
| Transmit voltage | 25～300V,25V step pace |
| Pulse width | 25～300ns,5ns step pace |
| Output interface | MINI USB,data export to the host computer |
| Input method | Key combination input,support short press and long press recognition |
| Display screen | 2.4-inch 320×240 IPS_LCD |
| Battery | Two 1.5V AA batteries |
| Size | 153mm×76mm×37mm |
| Weight | 228g,no battery |
| Language | Chinese,English |
| Unit | Metric system, English system |
| Working temperature range | -10℃～55℃ |
| Name | Quantity |
| Host TG-4900DL | 1 |
| probe | Optional |
| Alkaline battery | 2 |
| Coupling agent | 1 |
| Instrument sealing box | 1 |
| User Manual | 1 |
| Product warranty card | 1 |
| Product certificate | 1 |
Optional Configurations
| TG-4900DLProbe selection | |||
| Model | 5PΦ10 | 5Z20N | 15P6 |
| Type | double crystal5M | single crystal5M | single crystal15M |
| Frequency | 5MHz | 5MHz | 15MHz |
| Diameter of contact area | 10mm | 20mm | 6.35mm |
| Measuring range | 1~400.0mm | 4～3200.0mm | 0.15～25.0mm |
Allowable contact temperature | -10～70℃ | -10～70℃ | -10～70℃ |
Product Features
