商品の詳細:
|
| 広告: | 16ビット | ダイナミックバランス用の回転速度範囲: | 70〜13,000回転/分 |
|---|---|---|---|
| 振動の測定精度: | 5% | データ保存: | 8G |
| 入力信号: | 加速度計、ICP、電圧 | ||
| ハイライト: | portable dual-channel vibration analyzer,vibration analyzer with 8G storage,dual-channel vibration testing equipment |
||
| Attribute | Value |
|---|---|
| AD | 16 bit |
| Rotation speed range for dynamic balancing | 70-13,000 r/min |
| Measuring accuracy of vibration | 5% |
| Data storage | 8G |
| Input signal | Accelerometer, ICP and voltage |

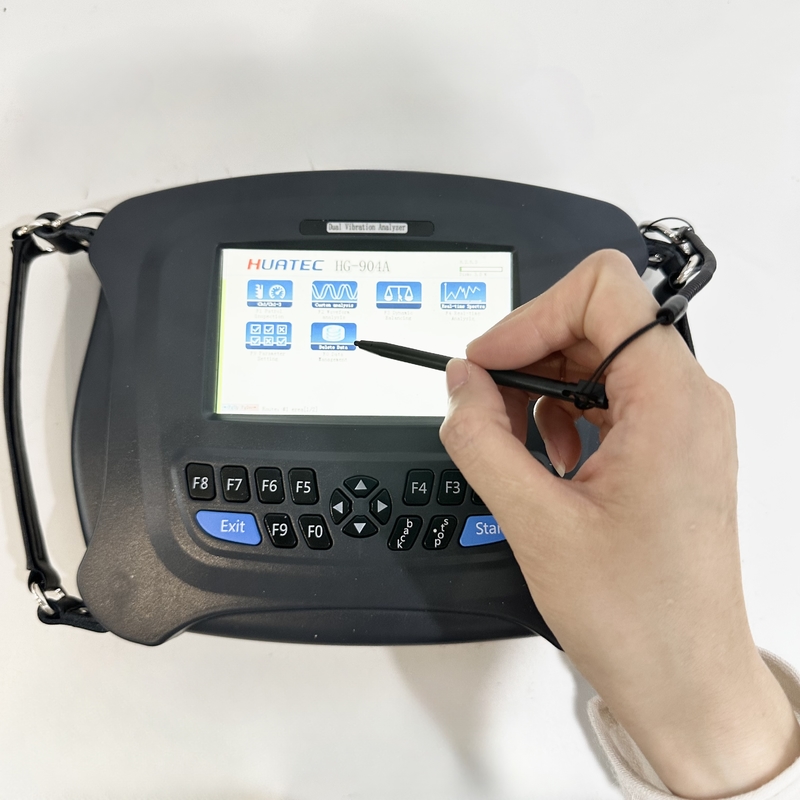

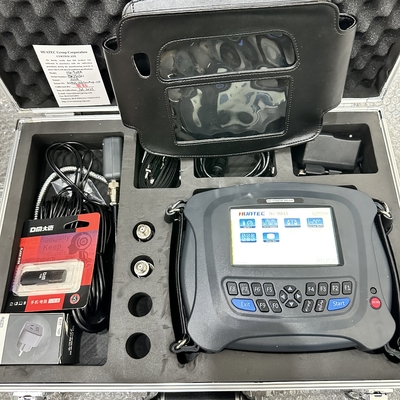

The HG-904A Dual Channel Machinery Frequency Spectrum Analyzer is designed for dynamic balancing and vibration detection. Imbalance is one of the main causes of machine vibration, accounting for approximately 50% of all faults. This analyzer provides on-site balancing capabilities by measuring vibration intensity, diagnosing causes through frequency spectrum analysis, and calculating imbalance weight and location.
| Amplitude ranges | Frequency Response |
|---|---|
| Displacement: 0.003 - 5 mm peak-peak | 10 - 500 Hz |
| Velocity: 0.2 - 200mm/s true RMS | 10 - 1000 Hz |
| Acceleration: 0.5 - 250m/s² peak | 20 - 5000 Hz |
| Envelope: 0.1 - 20unit true RMS | 5-1000Hz from 15-40 KHz |
| Voltage: 0.1 - 10V peak-peak | 10 - 10000 Hz |
