商品の詳細:
|
| 硬度計: | HL、HRC、HRB、HRA、HVのHB、HS | 測定範囲: | HLD ((170?? 960) |
|---|---|---|---|
| 測定の方向: | 360° | 通信ポート: | 小型USB |
| 表示: | ドットマトリックス LCD 128×32 ドット | データ保存: | 350 グループ 最大 衝撃 時 32~1 |
| 充満電源: | 5VDC、220VAC | ||
| ハイライト: | Portable Leeb hardness tester OLED,Leeb hardness tester USB,Portable hardness tester non-destructive |
||
| Attribute | Value |
|---|---|
| Hardness Scale | HL, HRC, HRB, HRA, HV, HB, HS |
| Measuring range | HLD（170～960） |
| Measuring direction | 360° |
| Communication port | Mini USB |
| Display | dot matrix LCD 128×32 dots |
| Data storage | 350 groups maxim, relative to impact times 32~1 |
| Charging power supply | 5VDC，220VAC |

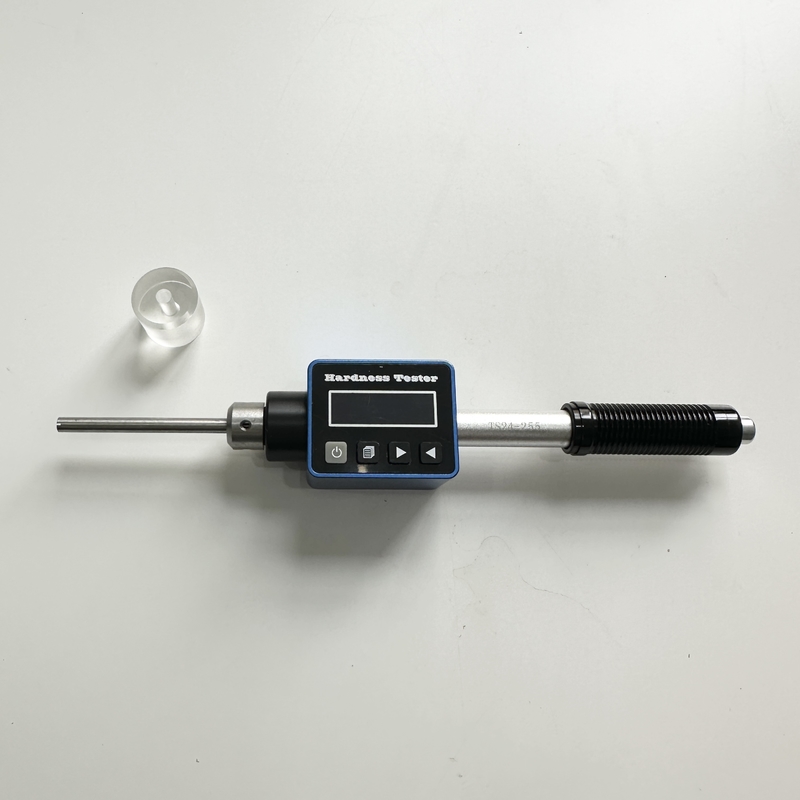

The RHL-110DL portable hardness tester can directly measure different types of hardness values including (HRC, HRB, HRA), Leeb (HL), Brinell (HB), Vickers (HV), and Shaw (HS). Compliant with international standards, it meets the "Leeb hardness tester technical conditions ZBN7l 010-90" and the "metal in the hardness test method GB / T 17394-1998" Leeb hardness standard JB/ T9378-2001 standards issued by the Ministry of Machinery Industry and National Quality and Technical Supervision.
With its low-power design and high-performance Li batteries, it achieves ultra-long standby time. The compact and flexible design increases user flexibility.
| Model | RHL-110DL |
|---|---|
| Hardness scale | HL, HRC, HRB, HV, HB, HS |
| Measuring range | HLDL(197 ~ 965), HRB(30.7 ~99.9), HRC(20.6 ~ 68.2), HB(81 ~ 646), HV(80 ~ 950), HS(30.6 ~ 96.8) |
| Clock | Real-time data and time |
| Auto off | 3~5 Minutes without any operation |
| Data Interface | USB,Bluetooth |
| Power | Rechargeable Li Battery, 3.7V |
| Memory | 373~2688 group (Impact times: 32~1) |
| Display | 128 × 36 OLED |
| Continuous Working time | About 30h |
| Charging time | 1.5 ~ 2 hours |
| Overall dimensions | 205.5 × 33 × 30 mm |
| Weight | 110.6g |
| Material | Hardness test method | Impact device type |
|---|---|---|
| DL Steel and cast steel | Rockwell HRC: 20.6～68.2 HRB: 37.0～99.9 HRA |
Brinell HB: 81～646 Vickers HV: 80～950 Shore HS: 30.6～96.8 |

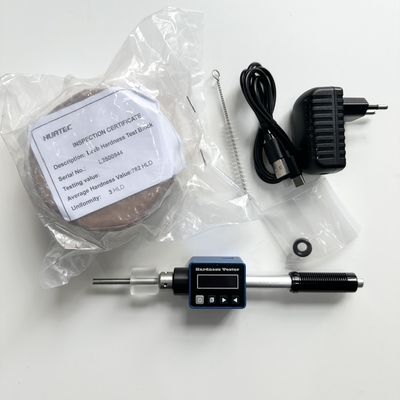

| NO. | Item | Quantity |
|---|---|---|
| 1 | Main unit | 1 |
| 2 | Small support ring | 1 |
| 3 | Cleaning brush (I) | 1 |
| 4 | High value test block | 1 |
| 5 | Charger | 1 |
| 6 | Communication cable | 1 |
| 7 | Software | 1 |
