商品の詳細:
|
| 測定範囲（mm）: | 0 ¥ 6000 | 垂直直線性誤差: | ≤3% |
|---|---|---|---|
| 水平直線性誤差: | ≤0.1% | パルス移動 (μs): | -20 〜 +3400 |
| 材料の速度 (m/s): | 1000 | 15000 | 利益 (dB): | 0 ¥ 110 |
| 周波数範囲（MHz）: | 0.5 | 15 | ||

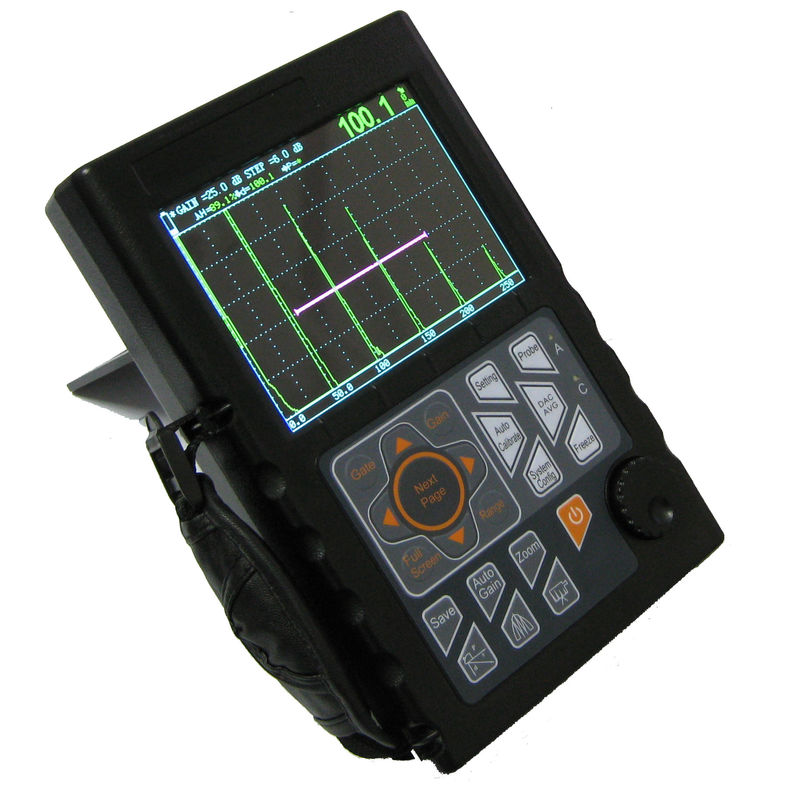

| ハイライト: | portable ultrasonic flaw detector,ultrasonic welding flaw detector,non-destructive testing equipment 6000mm range |
||
| Attribute | Value |
|---|---|
| Measuring Range (mm) | 0 - 6000 |
| Vertical Linearity Error | ≤3% |
| Horizontal Linearity Error | ≤0.1% |
| Pulse Displacement (μs) | -20 - +3400 |
| Material Velocity (m/s) | 1000 - 15000 |
| Gain (dB) | 0 - 110 |
| Frequency Range (MHz) | 0.5 - 15 |
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Measuring Range (mm) | 0 - 6000 | Measurement Mode | Single, Dual, Thru |
| Vertical Linearity Error | ≤3% | Reject | 0~80% |
| Horizontal Linearity Error | ≤0.1% | Pulse Displacement (μs) | -20 - +3400 |
| Sensitivity Leavings | ≥62dB | Zero (μs) | 0.0 - 99.99 |
| Dynamic range | ≥32dB | Port Type | BNC(Q9) |
| Resolving Power | ≥36dB | Operating Temperature (℃) | -20 - 50 |
| Frequency Range (MHz) | 0.5 - 15 | Dimensions (H×W×D, mm) | 240×156×48 |
| Gain (dB) | 0 - 110 | Weight (kg) | 1.0 (with battery) |
| Material Velocity (m/s) | 1000 - 15000 |
