商品の詳細:
|
| 総入力電源: | 2500W | 単点圧力: | 0-50N |
|---|---|---|---|
| 粉砕のヘッド速度: | 10~120 rpm (インテリジェント・スピード制御) | 研磨速度: | 50～1500 rpm（インテリジェントスピードコントロール） |
| 研削パラメータ: | 研磨・研削スキームを100件保存 | 磨き の 時間: | 0-9999秒 x2 |
| 磨く正確さ: | ジャンプは0.05mm未満です | ||
| ハイライト: | automatic sample grinding machine,high precision polishing equipment,intelligent non-destructive testing machine |
||
| Attribute | Value |
|---|---|
| Total input power | 2500W |
| Single point pressure | 0-50N |
| Grinding head speed | 10-120 rpm (intelligent speed control) |
| Polishing speed | 50-1500 rpm (intelligent speed control) |
| Grinding parameters | Store 100 grinding and polishing schemes |
| Grinding time | 0-9999 seconds X2 |
| Polishing accuracy | The jump is less than 0.05mm |

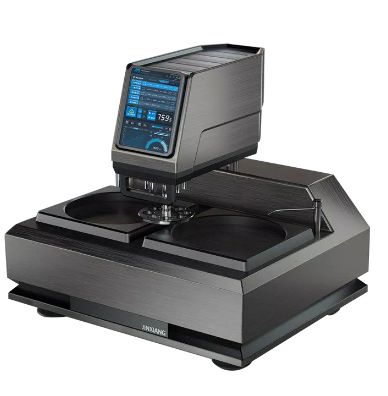

The HPA-2ZSGZ is an intelligent automatic grinding and polishing machine, representing the new generation of high precision sample preparation and pre-treatment equipment manufactured according to international standards and advanced technology.
| Parameter | Specification |
|---|---|
| Main Host | Desktop dual control |
| Hull Material | SUS 304 stainless steel |
| Polishing Disc Material | Aluminum alloy |
| Number of Polishing Discs | Dual disk two workstations (customizable) |
| Working Power Supply | 220V 50HZ |
| Number of Clamps | Φ30mm*8 (special sizes available) |
| Pressure Method | Pneumatic single point |
| Operation Modes | Intelligent/Manual/Semi-automatic |
| Control System | PLC with 10" HD touch screen |
| Abrasive Addition | Double channel intermittent automatic spraying |
| Head Motor | 100W stepper motor |
| Grinding Mill Motor | 1000W * 2 servo motors |
| Maximum Specimen Size | Circular: Φ120mm; Square: 120mm*50mm |
| Dimensions | 830*800*800mm (L*W*H) |
| Weight | Approx. 150kg (180kg with packaging) |
| Item No. | Name | Specifications | Qty | Remarks |
|---|---|---|---|---|
| 1 | Product Name | MP-2ZS | 1 | 1 set |
| 2 | Aluminum alloy grinding disc | Ø250mm | 1 | Mounted on machine |
| 3 | Aluminum alloy polishing disc | Ø250mm | 1 | Mounted on machine |
| 4 | Automatic feeding system | Dual station | 1 | External |
| 5 | Sample holder | Ø30mm*8 holes | 1 | Mounted on machine |
| 6 | Dust guard | 850×900×900mm | 1 | Mounted on machine |
| 7 | Water barrier | Ø300mm | 2 | Mounted on machine |
| 8-11 | Back adhesive metallographic sandpaper | Ø250mm (320#, 600#, 1500#, 3000#) | 10 each | Per type |
| 12 | Clean brush | 5mm*19mm | 1 | Individual |
| 13 | Polish velvet cloth | Ø250mm | 2 | Velvet |
| 14 | Alumina polishing powder | W0.5 | 1 | 100g |
| 15 | Cooling water pipe | 360° rotating | 2 | Mounted on machine |
| 16-23 | Accessories | Various | As listed | See full specifications |
