商品の詳細:
|
| Working disk diameter: | Standard 254mm with magnetic transfer disk system | 粉砕のヘッド速度: | 0-100r/min |
|---|---|---|---|
| 試料の調製の時間帯: | 0-9999s | 負荷範囲: | 30〜200N |
| 読み込みモード: | センターロード | サンプルグリッパー: | 標準30mm六角（オプション40-50mm四角、その他はカスタマイズ可能） |
| モーター力: | 0.75 kw | ||
| ハイライト: | automatic metallographic grinding machine,central pressure polishing equipment,sample grinding machine with warranty |
||
| Working disk diameter | Standard 254mm with magnetic transfer disk system |
| Grinding head speed | 0-100r/min |
| Sample preparation time range | 0-9999s |
| Loading range | 30-200N |
| Loading mode | Center load |
| Sample gripper | Standard 30mm six (optional 40-50mm four, the rest can be customized) |
| The motor power | 0.75 Kw |

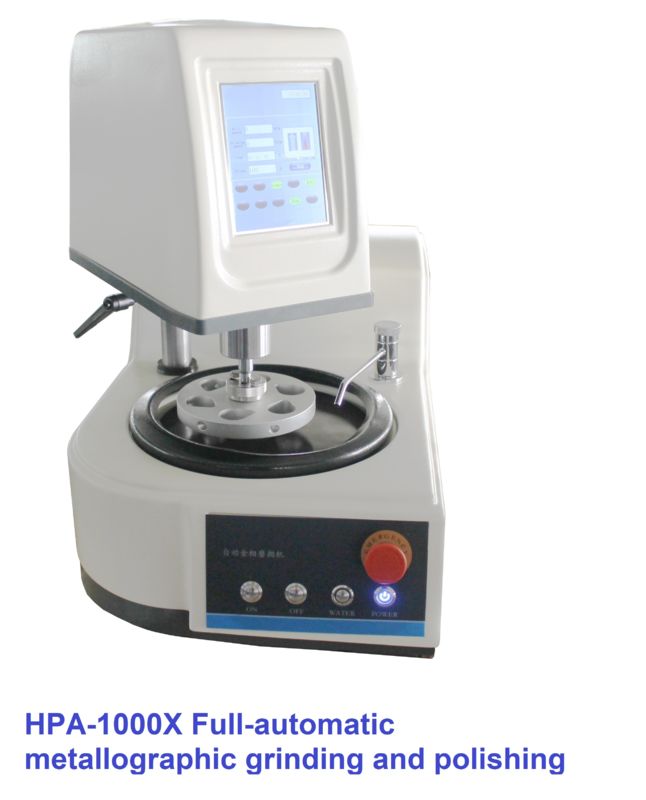

| Specifications | HPA-1000X | HPA-2000X |
|---|---|---|
| Station | Single plate | Double disk |
| Working disk diameter | Standard 254mm with magnetic transfer disk system | |
| Working disk speed | 100-1000 RPM steering positive and negative rotation can be switched | |
| Grinding head speed | 0-100r/min | |
| Sample preparation time range | 0-9999s | |
| Loading range | 30-200N | |
| Loading mode | Center load | |
| Sample gripper | Standard 30mm six (optional 40-50mm four, the rest can be customized) | |
| The power supply | AC220V, 50 hz | |
| The motor power | 0.75 Kw | |
| Overall dimension (length * width * height) | 760 x 470 x 700 | 760 x 730 x 700 |
| The weight | 90kg | 120kg |
(This list is for reference, the type or quantity of annex shall be subject to the contract)
| Item | Quantity single/double | Item | Quantity single/double |
|---|---|---|---|
| Waterproof circle | 1/2 | Sandpaper with adhesive (250) 320# | 10 |
| Holder | 1 | Sandpaper with adhesive (250) 1000# | 10 |
| Inner hexagon wrench 4mm | 1 | Velvet with back glue polishing cloth (250) | 1 |
| 5mm inner hexagon wrench | 1 | Anti-stick disc (250mm) | 1/2 |
| The feed line 8 mm | 1 | Magnetic working disk (250mm) | 1/2 |
| Drain the 25 mm | 1 | Hook | 1 |
| Power transfer connection | 1 | Quick twist joint SNZ08-04 | 1 |
| Data transfer connection | 1 | Hose hoops 18 to 32 | 1 |
| Teflon tape | 1 | Triangle valve | 1 |
| Diamond suspension polishing liquid 6 micron 200ml | 1 bottle | Rubber pad with strainer | 1 |
| Polishing lubricating coolant blue 200ml | 1 bottle | Filter screen (60 mesh, double layer) | 4 |
| Stylus | 1 | Install the machine | 1 |
Technical documents: 1. User Manual 2. Product qualification certificate
| Item | Description |
|---|---|
| GSC250A | Metallographic sandpaper 100 pieces/packet Abrasive: black silicon carbide Size: P80# 120# 180 # 320 # 600 # 800 # 1000 # 1200 # 1500 # 2000 # Size: 250 mm Φ water resistant With a stick back, the sandpaper can be fixed directly on the working table |
| MAGNOMET | Anti-sticking disc 5 pieces/box diameter: 250 mm Φ Special anti-stick coating is used on the surface. Sandpaper or polishing cloth with back glue can be pasted on the plate. It is easy to replace and no residual glue is left. Can be used again and again. The disc is directly used on the magnetic disc of BUEHLER or STRUERS; Alternative BUEHLER company MagnoMet and MagnoPad |
| FT250A | Metallographic polishing fabric 10 pieces/bale Velvet (long hair)/canvas (short hairs)/cloth (short hairs)/silk (no villi) Φ 250 mm Stick back: The fabric can be fixed directly on the working table |
| DSU | Diamond suspension grinding and polishing liquid 500ml/ bottle Diamonds are suspended in a liquid, dripped into it by a spray bottle or automatically, and are evenly distributed Particle size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 microns, suitable for a variety of materials |
