商品の詳細:
|
| フィルムの指定: | 最低10*10cmの最高45*∞cm | 好景気: | 90-360sec |
|---|---|---|---|
| 成長の時間: | 20-60sec | 洗い流す容積: | 140pieces/時間（14" *17」） 210の部分/時間（11" *14」） |
| 薬剤タンク容量: | 、成長し、および各8Lを洗浄すること固定する | 開発者の温度: | ℃adjustable 20℃-40 （間隔0.1℃） |
| ハイライト: | digital display X-ray flaw detector,NDT film developer processor,X-ray film processor with warranty |
||

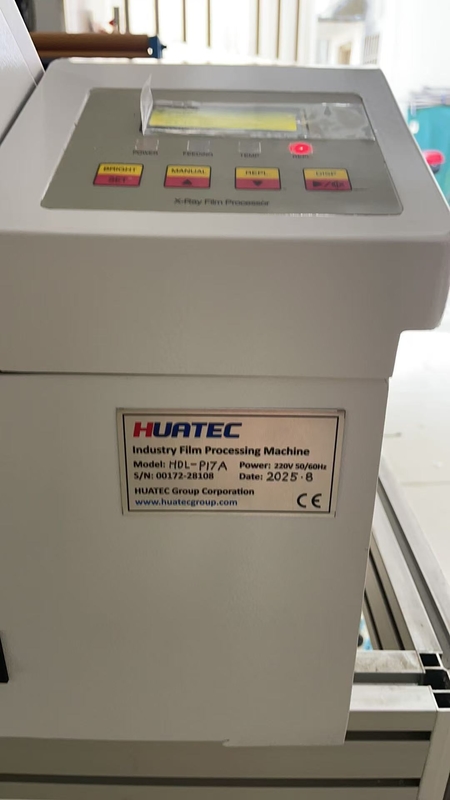

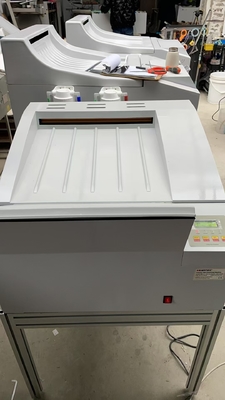

With Digital Display NDT X-ray Flaw Detector Film Developer Processor
HDL-P17A NDT is the two high market, economical and practical industrial flushing machine. It washes the width and speed of high quality, good reliability and various specifications. It is widely used in the construction of boiler, shipbuilding, pressure vessel, petroleum and natural gas pipeline, and the quality inspection of various kinds of dynamic and pressure equipment. Praised by the clients of the testing industry.
Outstanding features:

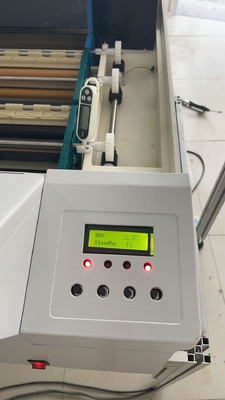

digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.

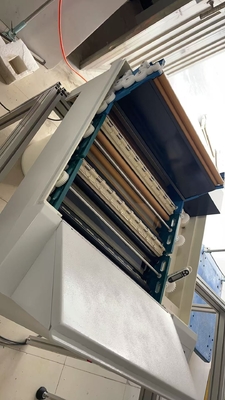

The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.
drying system adopts special roller combination and electronic control to ensure hot air drying film.
anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.
| Model | HDL-P17A |
| Film specification |
Minimum 10*10cm maximum 45*∞cm |
| Flushing time | 90-360sec |
| Developing time | 20-60sec |
| Flushing volume | 140pieces / hours(14"*17")210 pieces / hours(11"*14") |
| Drug tank capacity | Developing, fixing, and washing each 8L |
| Developer temperature | 20℃-40 ℃adjustable (interval 0.1℃) |
| Drying temperature | 40℃-65 ℃(automatic regulation) |
| Film induction | Imported microswitch |
| Volume ㎝³ | 79*69*42 |
| weight | Gross weight 60kg (net weight 55kg) |
| Anti crystallization and anti oxidation | 45 minutes / times |
| Flushing process | Development→Fixed shadow→washing→Dry |
| Supplement | According to the area of film flushing, automatic water replenishment is provided, and manual replenishment is also provided. The amount of water replenishment is 20-200ml/0.3㎡ |
| Water washing control | When the film is flush, it will automatically water for 2-8L/ minutes, and automatically shut down when standby. |
| Power consumption | 220V 50/60Hz 8.8A (flushing 2KW, standby 120W) |
Standard equipment
1. development synchronous heating system
2. development of independent circulation system
3. development synchronous supplementary system
4. water controlled water saving system of solenoid valve
5. professional conical air duct drying system
6. mechanical sensing feeding system
7. DKM electronic speed control energy saving system
Technical parameters:
The size of u film is minimum 60 * 100mm, the widest 450mm width and the longest film is 15 meters.
film type film & sheet film
The running time of u is 4.5 to 14 minutes
chip speed 100~33 mm / min
development time is 60-180 seconds (recommended for 90 seconds)
washing volume 350*430mm 25 sheets / hour; 80*300mm 100 sheets / hour.
volume development, fixing and washing each 6.8 liters.
supplementary volume automatic test supplement 50-200 ml / m2
development temperature can be adjusted from 20-40 degrees
setting temperature automatically adjusts according to developing temperature
drying temperature 40-70 degrees
water temperature 5~30 degree
water consumption film is less than 2 liters / minutes during operation
power 220~240V8.8A 50 or 60Hz
weight 60 kg
volume (long * width * height) 78 x 59 x 45 cm
