商品の詳細:
|
| 許容範囲: | ±5％ | ||
|---|---|---|---|
| ハイライト: | Digital Thickness Gauge calibration blocks,Linearity checking blocks set,Non-destructive testing thickness gauge accessories |
||

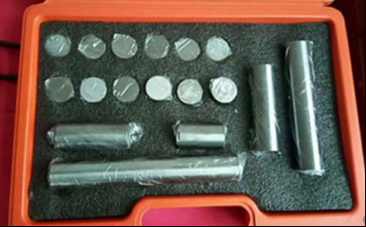

Blocks for the linearity checking of Digital Thickness Gauge Set (17 pcs)
Set (17 pcs) of ultrasonic thickness calibration blocks is intended for checking linearity of ultrasonic contact thickness gauges.
l High quality of the materials
l High precision blocks to a tolerance of ±5%
The blocks can be supplied as a complete set or separately.
|
Standard value |
0.5 |
1.0 |
1.2 |
1.5 |
2.0 |
3.3 |
|
|
Allowable error (a) |
±0.01 |
|
|||||
|
Standard value |
5.5 |
7.7 |
10 |
15 |
20 |
25 |
50 |
|
Allowable error (a) |
±0.01 |
±0.02 |
|||||
|
Standard value |
75 |
100 |
150 |
200 |
|||
|
Allowable error (a) |
±0.02 |
±0.05 |
|||||
