商品の詳細:
|
| 秤交換: | Surface Rockwell、Brinell、Vickers | 休憩 時間: | 0-99s |
|---|---|---|---|
| ロックウェルの総負荷: | 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N) | 表面ロックウェルの総負荷: | 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N) |
| 負荷値の誤り: | 0.5％未満 | 硬度測定の精度: | 0.1HR |
| サンプルの最大高さ: | 400mm | 外壁への圧子の間隔: | 200mm |
| テスト力の誤差: | <1.0% | ||
| ハイライト: | Touch Screen Rockwell Hardness Tester,Customized height Hardness Tester,Non Destructive Testing Equipment with warranty |
||

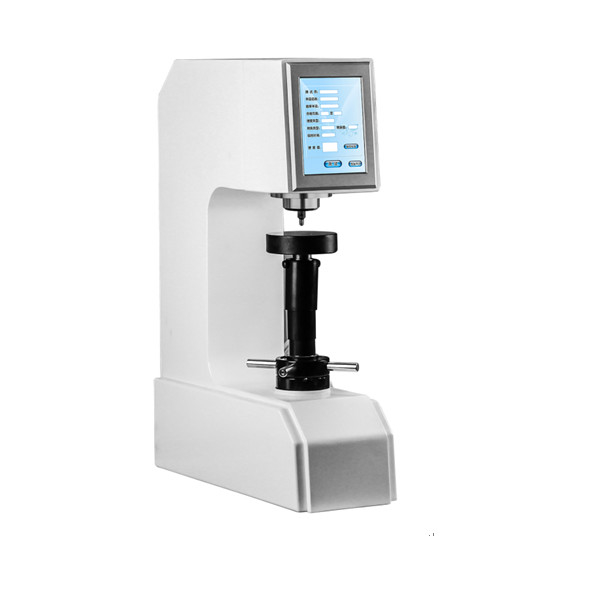

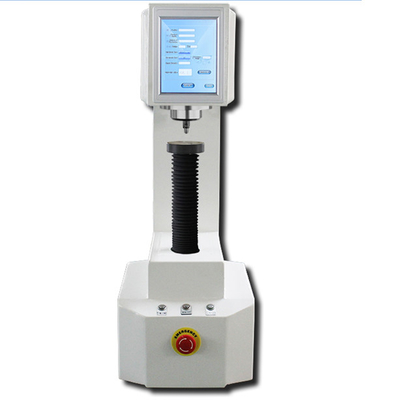

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester
Product description:
1. Adopt electronic electric loading, high precision sensor and unique closed-loop control system.
2. Touch screen interface, easy to operate, directly select the hardness scale, force value automatically changes in the test parameters.
3. According to the standard hardness block, the high, middle and low sections of each hardness scale shall be automatically corrected.
4. Test force can be automatically corrected by standard dynamometer.
5. Automatically apply the initial test force and the main test force.
6. Powerful data processing function, including: HR, HB, HV and other hardness standard conversion, set the qualified range, automatic alarm over the limit, can input tester, sample name and other information.
7. More samples and test information, and the measurement data are saved in EXCEL format for easy editing and processing.
Technical parameters:
|
Model |
HR-150DX(H) |
|
Beginning test force |
10kgf(98.07N) |
|
Total test force |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
|
Rockwell hardness scale |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV |
|
Test range |
HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125 |
|
Duration time |
0-99s |
|
Hardness resolution |
0.1HR |
|
Error of test force |
＜1.0% |
|
Data output |
LCD display |
|
data storage |
Measurements are stored on a usb drive in EXCEL format |
|
Conversion scale |
Surface Rockwell, Brinell and vickers |
|
standard |
BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
|
Maximum allowable height of specimen |
400mm |
|
Distance from head to wall |
200mm |
|
Size |
560×220×980mm |
|
Weight |
90kg |
|
Power |
AC220+5%,50～60Hz |
Standard accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond head |
1PC |
Diameter 1.5875mm ball indenter |
1PC |
|
Hardness block (2PCS HRC and 1PC HRB) |
total 3 pieces |
Large, medium and V type test stand |
Each one |
|
Fuse 2A |
2pcs |
Adjust the foot horizontally |
4pcs |
|
Usb flash drive, touch pen |
Each one |
Dust bag |
1pc |
|
Power |
1pc |
instructions |
1pc |
|
Product certificate and warranty card |
1pc |
|
|
