商品の詳細:
|
| 最初のテスト力: | 10 kgf（98.07 n） | ロックウェルの総負荷: | 60kgf （588N） 100kgf （980N） 150kgf （1471N） |
|---|---|---|---|
| 負荷値の誤り: | 0.5％未満 | 硬度測定の精度: | 0.1HR |
| サンプルの最大高さ: | 200mm | 外壁への圧子の間隔: | 200mm |
| 負荷保持時間: | 0-99s | データストレージ: | 20のテスト結果、組み込みのプリンターRS-232インターフェイスを保存できます |
| ハイライト: | touch screen Rockwell hardness tester,digital plastic hardness tester,Rockwell hardness tester with warranty |
||

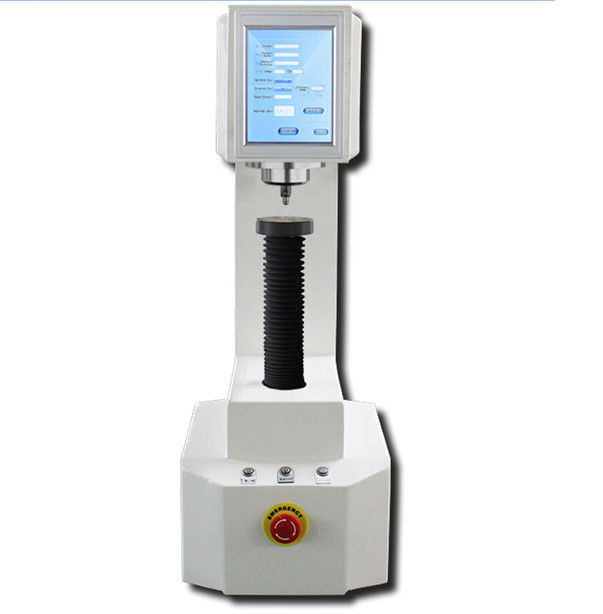

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
I, Product Description:
II, Technical parameters:
|
Model number |
HR-150DT-P |
|
Initial test force |
10 KGF (98.07 N) |
|
Total test force |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
|
Rockwell hardness scale |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
|
Scope of testing |
HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125 |
|
Load retention time |
0-99s |
|
Hardness value resolution |
0.1 HR |
|
Test force error |
< 1.0% |
|
Data output |
LCD display |
|
Touch screen size |
8 inches |
|
Data storage |
Can store 20 test results, built-in printer RS-232 interface |
|
Compliant with standards |
GB/T230.2, GB/T3398.2, JB/T7409 |
|
Maximum allowable specimen height |
200mm |
|
Distance from indenter to machine wall |
200mm |
|
Size |
560×200×800mm |
|
Weight |
70kg |
|
Power supply |
AC220+5%,50 to 60Hz |
III,Standard accessories:
|
Name |
quantity |
Name |
Quantity |
|
Touchscreen pen, printer paper |
1 each |
Large, medium, and V-shaped test stands |
1 each |
|
Ball indenter (diameter 3.175, 6.35, 12.7mm) |
3 pieces |
Hardness blocks (HRE,HRL,HRM,HRR) |
4 blocks |
|
Spirit level |
1 |
Horizontal adjustment foot |
4 |
|
Power cord |
A root |
Dust bag |
1 |
|
Product certificate, warranty card |
1 copy |
Instructions |
1 copy |
