商品の詳細:
|
| 製品名: | 工業用電子内視鏡 | 観測方向: | 直視力 |
|---|---|---|---|
| 焦点距離: | 修理済み | プローブの直径: | Φ6mm/Φ8mm/Φ10mm/Φ12mm |
| 被写界深度: | 10mm-∞/20-150 | 探査機の曲がり方向: | 4ウェイ |
| ハイライト: | 4-way industrial endoscope with HD display,industrial endoscope with 5-inch screen,non-destructive testing endoscope with warranty |
||
| Parameter | Specification |
|---|---|

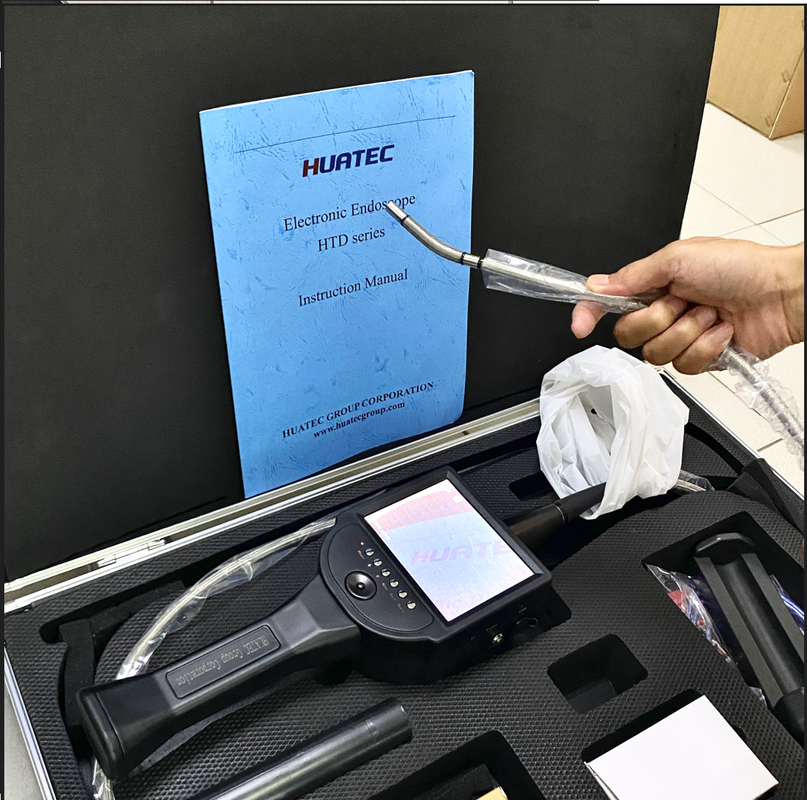

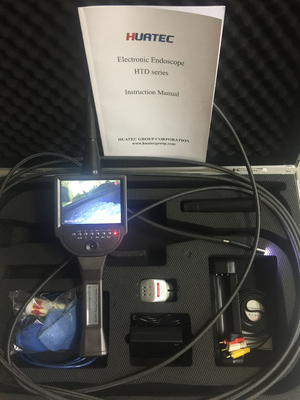

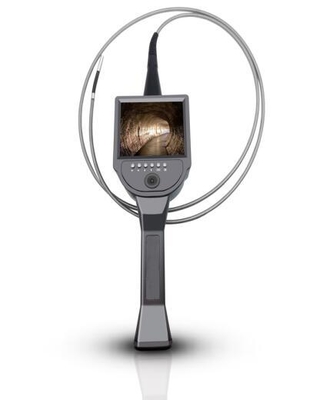

| Product Name | HTD-D Series Industrial Electronic Endoscope |
| Optical System | Direct vision observation |
| Field Angle | ≥70° |
| Probe Diameter | Φ6mm/Φ8mm/Φ10mm/Φ12mm |
| Probe Bending Angle | ≥120° (4-way control) |
| Working Length | 1.5m (customizable) |
| Display | 5" TFT true color (250cd/㎡ brightness) |
| Image Resolution | >720×625 (450,000 pixels) |
| Light Source | High brightness LED |
| Storage | 8GB SD card (JEPG, MPEG4 formats) |
| Power | Built-in rechargeable battery |
| Interfaces | USB 2.0, AV OUT |
| Operating Mode | Handheld portable control |
