商品の詳細:
|

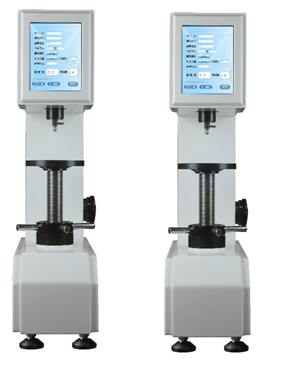

| 製品名: | ロックウェル硬度のテスター | モデル番号: | HR-150DT-P |
|---|---|---|---|
| 最初のテスト力: | 10 kgf（98.07 n） | 総テスト力: | 60kgf （588N） 100kgf （980N） 150kgf （1471N） |
| 硬度の価値決断: | 0.1 HR | データ出力: | LCDディスプレイ |
| ハイライト: | Rockwell hardness tester 150kgf,HR-150DT-P hardness testing machine,Rockwell tester 0.1 HR resolution |
||
| Model number | HR-150DT-P |
| Initial test force | 10 KGF (98.07 N) |
| Total test force | 60kgf(588N), 100kgf(980N), 150kgf(1471N) |
| Rockwell hardness scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Scope of testing | HRE:70-100, HRL:100-120, HRM:85-110, HRR:114-125 |
| Load retention time | 0-99s |
| Hardness value resolution | 0.1 HR |
| Test force error | <1.0% |
| Data output | LCD display |
| Touch screen size | 8 inches |
| Data storage | 20 test results capacity, built-in printer RS-232 interface |
| Compliant with standards | GB/T230.2, GB/T3398.2, JB/T7409 |
| Maximum specimen height | 200mm |
| Indenter to machine wall distance | 200mm |
| Dimensions | 560×200×800mm |
| Weight | 70kg |
| Power supply | AC220 ±5%, 50-60Hz |
| Name | Quantity | Name | Quantity |
|---|---|---|---|
| Touchscreen pen, printer paper | 1 each | Large, medium, and V-shaped test stands | 1 each |
| Ball indenter (diameter 3.175, 6.35, 12.7mm) | 3 pieces | Hardness blocks (HRE,HRL,HRM,HRR) | 4 blocks |
| Spirit level | 1 | Horizontal adjustment foot | 4 |
| Power cord | 1 | Dust bag | 1 |
| Product certificate, warranty card | 1 copy | Instructions | 1 copy |
