商品の詳細:
|
| 名前: | 高圧X線探傷器 | タイプ: | 工業用X線探傷装置 |
|---|---|---|---|
| 保証: | 12ヶ月 | 材料: | 金属 |
| ハイライト: | high voltage X ray flaw detector,constant potential flaw detector XXG-H300GP,non-destructive testing equipment with warranty |
||

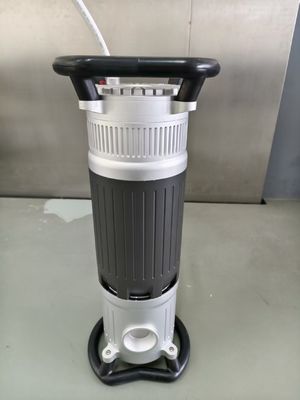

High voltage X ray constant potential flaw detector XXG-H300GP
General features:
*Continuous exposure is possible at 35 ℃ and 300kv/3mA conditions;
*Wide input voltage range, suitable for power supply of various generators;
*Lightweight, strong penetration, and stable performance;
*The controller adopts a cylindrical design with unique creativity;
*The operation interface is intuitive and easy to operate;
*High penetration ability: Max.70mm
*High power efficiency, can be 95%,small cable diameter and light weight.
*Can continuously work 99 minutes, no rest time, improve the work efficiency to a large extent

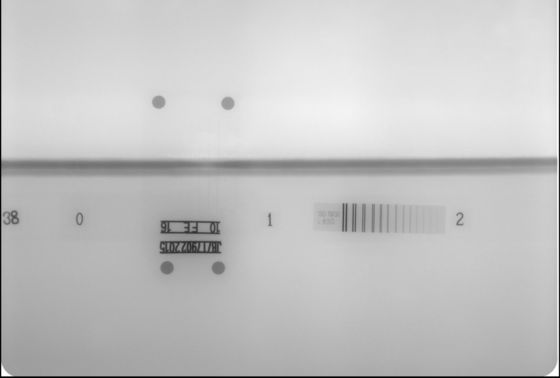

*Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 70mm due to different expose time setting. Better image clarity.
*High frequency design will reduce most of fault because it do not have high voltage coil.
*Can work with DR image system directly.
Technical Specifications
The whole machine features: high frequency, low Ma, continuous work. Wide range hardware design has long life and very low failure rate
Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head
The maximum penetration force: 70mm (F600, D > 2)
Random spare parts
10 core signal connecting cable
2 core power cable
A ground line
A set of Appendage package
The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
