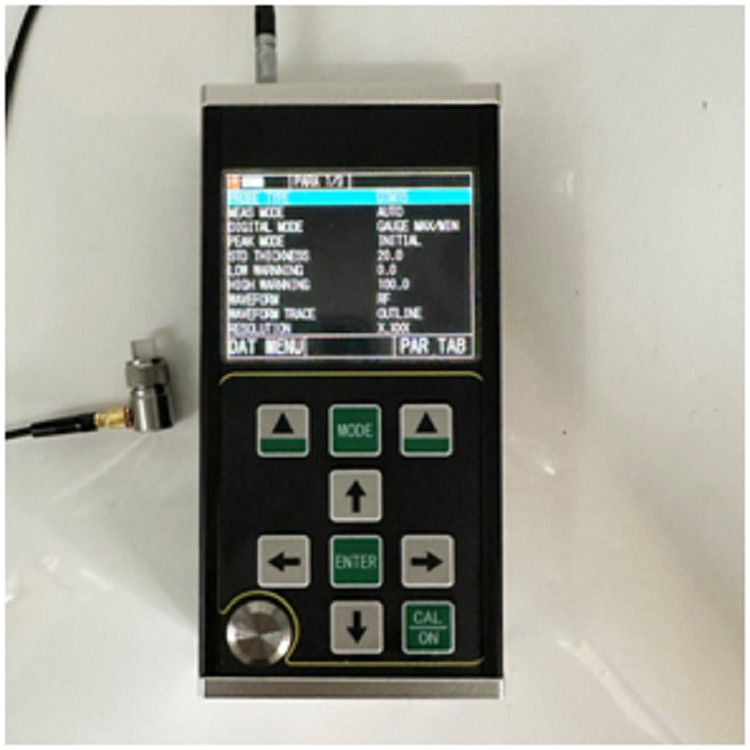

TG-5710 A/B Scan 0.100-1800mm Big range Ultrasonic Thickness Gauge

Item

TG-5710

Probe type

Single crystal probe / double crystal probe

Measuring range (45# steel)

0.10mm – 1800mm

Indication error(＜10mm)

±0.005mm

Indication error(≥10mm)

±0.1%

Repeatability error

±0.001mm(Self test)

Indication stability

Zero crossing and multiple echo technology are adopted to ensure that the thickness measurement value is not affected by echo strength, material attenuation coefficient, gain and gate height, and has high measurement stability and reliability.

Measurement frequency

4Hz,8Hz,16Hz

Resolution

0.1mm,0.01mm,0.001mm(0.01inch,0.001inch,0.0001inch)

Pulse generator

Negative square wave emission is adopted, and the pulse width and voltage are automatically matched with the probe.

Sound velocity range

400-19999m/s

Calibration block

4mm(steel)

Automatic shutdown

One can choose 5 minutes, 10 minutes, 20 minutes and manual shutdown.

Probe calibration

One point calibration, multi-point calibration

gain

Automatic gain control, Manual gain control

Gain range

0~70dB

Detection mode

Radio frequency (RF), positive half wave (POS), negative half wave (NEG), full wave (FULL)

Measurement mode

(1) MB-E: the measurement mode based on the transit time from the initial echo to the first bottom echo; (2) E-E: penetration coating measurement mode, the arbitrary Em–En echo is optional; (3) ME-E: multiple echo measurement mode; (4) THIN: thin wall measurement mode;

Numerical mode

Thickness value mode, difference / reduction rate mode, maximum / minimum value mode

A-scan mode

Available

B-scan mode

Available

Coupling indication

Available

Battery Indication

Available

Language

English

Unit

mm/inch

Menu operation

Available

Software function

Dynamic gate setting, blanking setting (Blank), echo blanking setting (E-blank), echo freezing, echo translation and scaling

Storage function

It can store 100,000 thicknesses (100 groups, 1000 in each group), 500 groups of A-scan waveforms and 500 groups of B-scan waveforms at the same time.

Host program upgrade

Available

Display

3.5 "QVGA (320 × 240) color TFT-LCD screen

Data transmission

It supports USB3.0 serial communication and transmits data to the computer.

Working temperature

-10℃～＋50℃; With special requirements, it can reach - 20 ℃;

Working voltage

Four No. 5 AA batteries are required. When the power is insufficient, there is a low voltage prompt.

Overall dimension

204 x 100 x 36 (mm)

Total Weight

310 g(Without battery)
