商品の詳細:
|
| 測定範囲: | 0.03～3.5mm(エポキシコールタールピッチ中) | 出力高圧: | 0.5-15KV |
|---|---|---|---|
| 高圧制御システム: | 通常のポテンチオメーター調整 | DC供給: | 12V |
| 消費: | <5W | 警報遅れ: | 1-2秒 |
| 高圧調査: | 電子高電圧発電機 | ||
| ハイライト: | light weight porosity holiday detector,HD-201A pointer display detector,non destructive testing equipment with warranty |
||

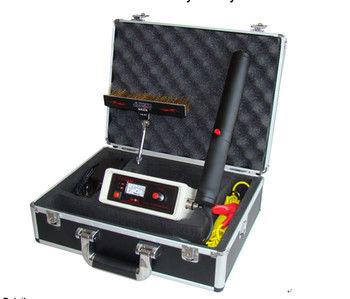

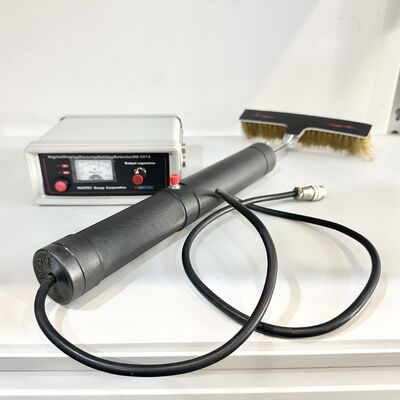

HD-201A Pointer Display Light Weight Porosity Holiday detector
[Function]
HD-201 Porosity Holiday detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment
[Characteristic]
1,Low power consumption, small size, light weight;
2,Simple operation;
[Main technical index]
[Accessories]

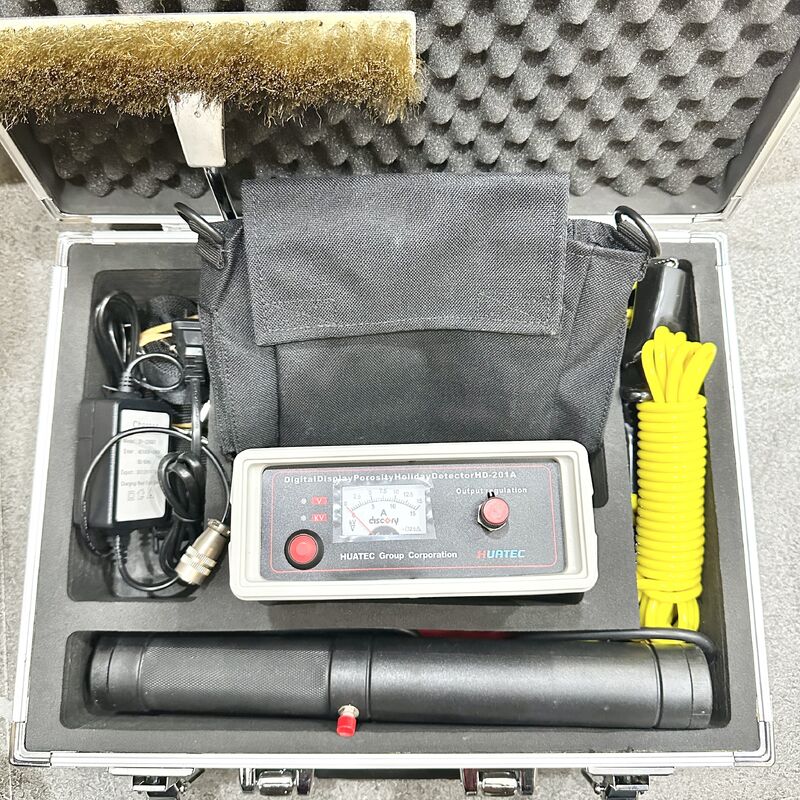

Charger, high pressure gloves, long cable, short connecting line, Connecting magnet, earth rod, The brush plate, Manual
[Principle]
The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.
