| 名前: | ISO 3452-1 タイプ 1 テストパネル | 使用: | カラーコントラスト浸透試験パネル |
|---|---|---|---|
| 応用: | 蛍光浸透感度試験 | 機能: | 浸透剤が軽微な欠陥を検出できるかどうかを評価する |
| ハイライト: | sensitivity level testing block,non destructive testing equipment,NDT sensitivity determination block |
||

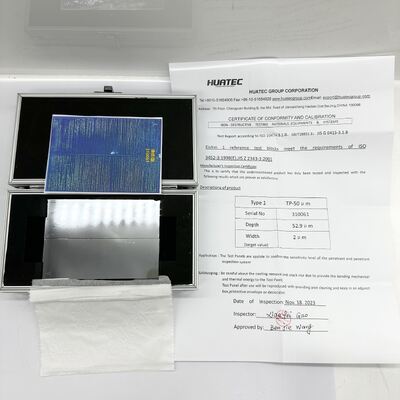

Sensitivity level determination block

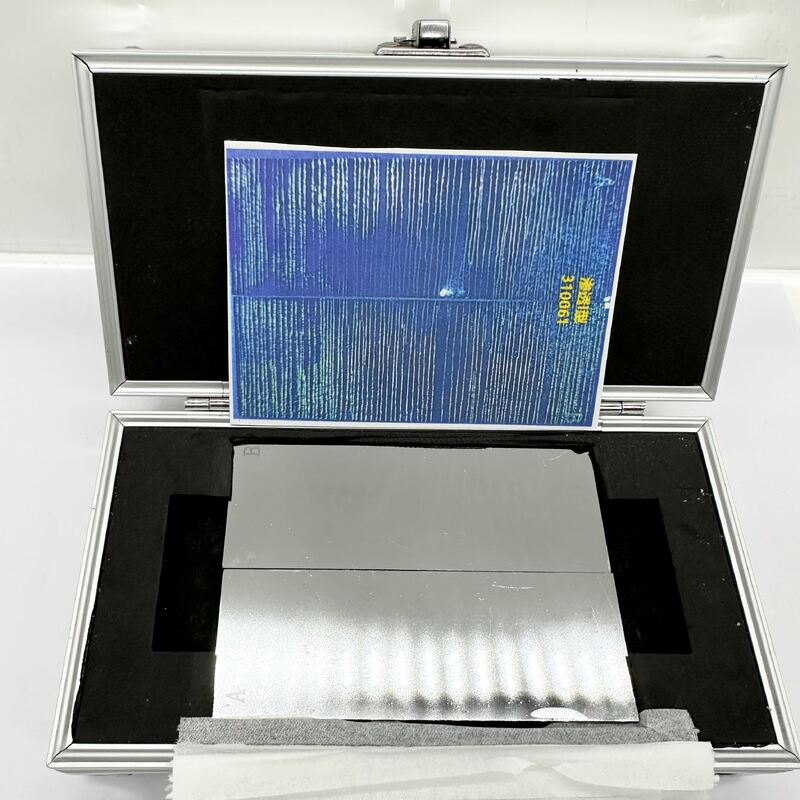

ISO 3452-1 Type 1 Test Panel
Detection sensitivity: Evaluate whether the penetrant can detect minor defects by detecting star shaped cracks on the test block.
Cleanability: By measuring the roughness area on the test block, determine the ease of cleaning the penetrant on the rough surface.
Structure and Parameters
Kit composition: A set of 4 brass plates with electroplating thicknesses of 10 μ m, 20 μ m, 30 μ m, and 50 μ m.
Regional division of labor: Each test block is divided into two parts:
Chrome plated area: There are 5 star shaped cracks used for sensitivity evaluation.
·Rough area: with a roughness of Ra 2.5 μ m to 15 μ m, used for washability measurement.
Applicable type:
10 μ m, 20 μ m, and 30 μ m test blocks: used for fluorescent penetrants.
30 μ m and 50 μ m test blocks: used for coloring penetrants.
|
Sensitivity* (unofficial) |
Fluorescent Penetrant Sensitivity Levels are established by the USAF Laboratory under highly controlled conditions. Sensitivity testing is not something the penetrant manufacturer or user can do. What you can do is compare samples using appropriate NiCr Cracked Panels. |
|
|
Crack Depth |
Level |
|
|
50 μm |
1, 2, 3, 4 |
|
|
30 μm |
2, 3, 4 |
|
|
20 μm |
3, 4 |
|
|
10 μm |
4 |
|
Guaranteed to be equivalent to both Sherwin and Magnaflux supplied panels.
Specifications Compliance: ASTM E1417, AMS 2647D, ISO 3452-3, JIS Z 2343-3
コンタクトパーソン: Ms. Shifen Yuan
電話番号: 8610 82921131,8618610328618
ファックス: 86-10-82916893
