商品の詳細:
|
| 製品名: | 孔隙感知器 | 測定範囲: | A：0.03～3.5mm |
|---|---|---|---|
| 画面: | ポインター | DC供給: | 12V |
| ハイライト: | HD-201A/B/C porosity detector,dial holiday detector,non-destructive testing equipment with warranty |
||
HD-201A/B/C Dial Porosity Holiday Detector
【Function】
HD-201 Porosity Holiday detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment.
【Characteristic】
1,Low power consumption, small size, light weight；
2,Simple operation
【Main technical index】
1,Measuring range:
| A: | 0.03-3.5mm(Epoxy coal tar pitch medium) |
| B: | 3.5-10.mm(Petroleum asphalt medium) |
| C: | 0.03-10.mm(Epoxy coal tar pitch,Petroleum) |
3,Output high voltage:
| A | 0.5-15KV |
| B | 15-35KV |
| C | 0.5-35KV |
4,Display:pointer
5,High voltage control system:Ordinary potentiometer adjustment
6,DC supply:12v
7,Consumption:＜5w
8,Alarm delay:1-2s

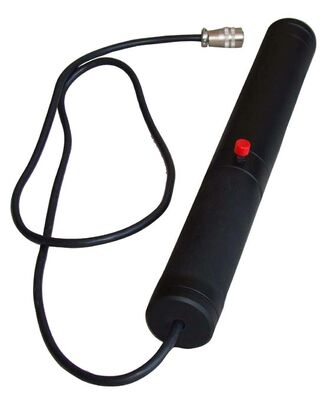

9,High voltage probe:Electronic high voltage generator

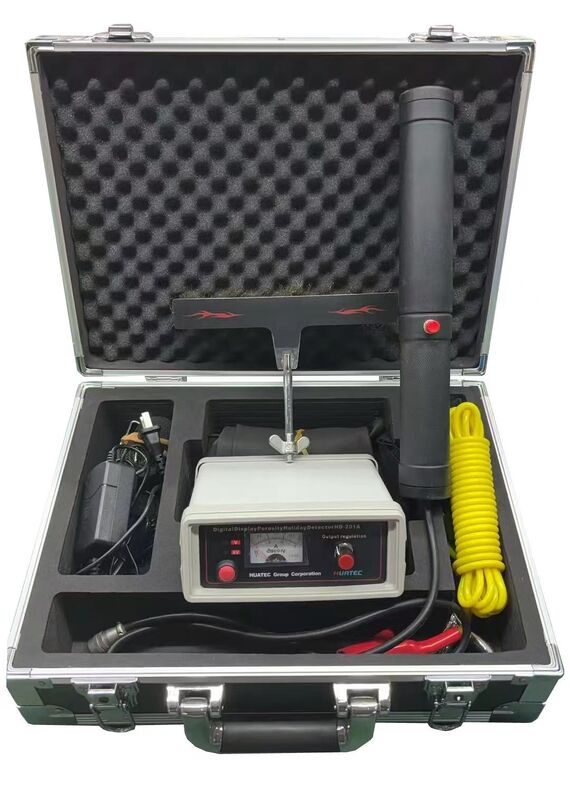

10,Packing:metal chest
11,Main dimension: 165mm×155mm×68mm
12,Weight:1.5kg(Including battery)
【Accessories】

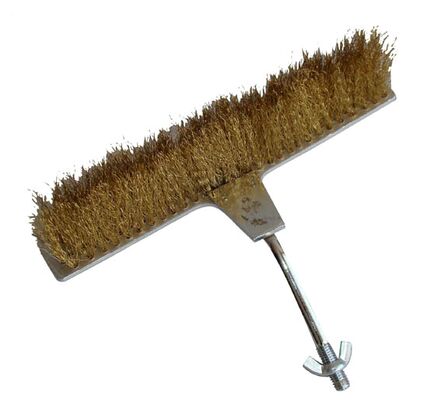

Charger, high pressure gloves, long cable, short connecting line, Connecting magnet, earth rod, The brush plate, Manual
【Principle】
The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.
