| 名前: | X線画像品質指標 | 使用: | IQI は、X 線検査システム全体の感度を検証することです。 |
|---|---|---|---|
| 応用: | 安全性と品質保証のための工業用X線撮影 | キーワード: | X線画像品質指標 |
| ハイライト: | X-ray image quality indicator tool,Non-destructive testing image quality checker,X-ray equipment quality assessment device |
||

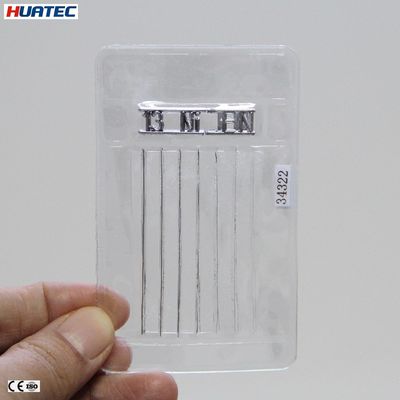

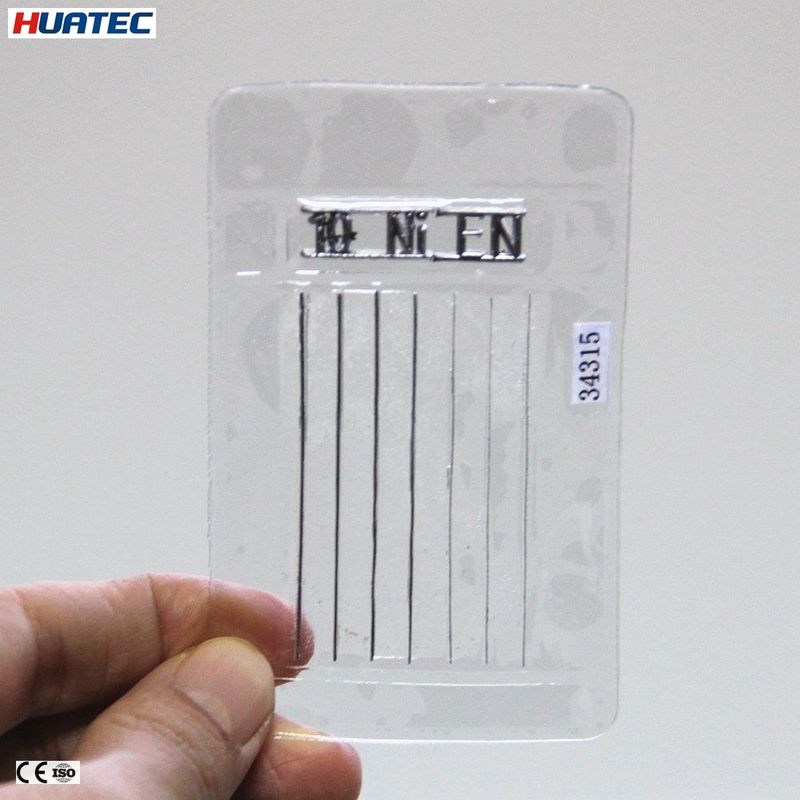

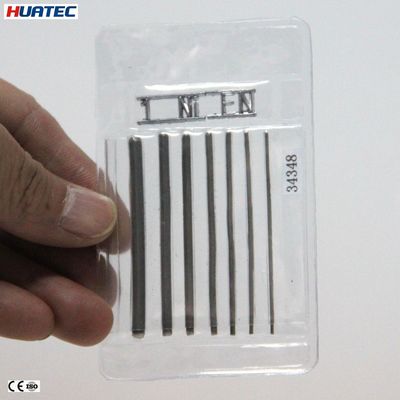

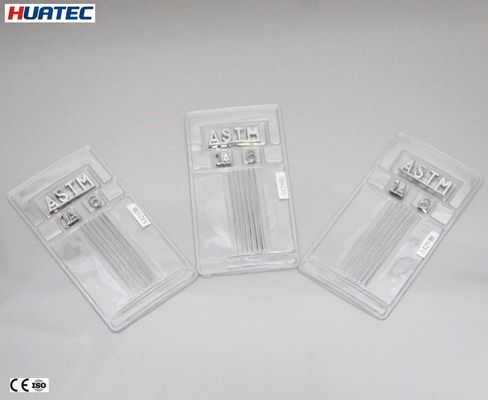

X-Ray Image Quality Indicator
An Image Quality Indicator (IQI) , commonly known as a penetrameter, is a reference standard device used in industrial radiography (X-ray or Gamma-ray testing) . It is not a flaw detector itself, but a tool to ensure the radiographic image (radiograph) is of sufficient quality to reveal flaws if they are present .
The primary purpose of an IQI is to verify the sensitivity of the overall radiographic testing system .
Common Material Codes: They are often designated by material codes such as:
· Fe: For Steel (Iron)
· Al: For Aluminum
· Cu: For Copper
· Ti: For Titanium
· Ni: For Nickel
· Specialty Materials: For inspecting castings or welds, the IQI material is selected based on the parent metal's density group .
| IQI | 1A Fe ASTM 50mm iron,s/s |
| IQI | 1B Fe ASTM 50mm iron,s/s |
| IQI | 1C Fe ASTM 50mm iron,s/s |
| IQI | 1D Fe ASTM 50mm iron,s/s |
| IQI | 1A CrNi ASTM 50mm s/s |
| IQI | 1B CrNi ASTM 50mm s/s |
| IQI | 1C CrNi ASTM 50mm s/s |
| IQI | 3A Ni ASTM 50mm |
| IQI | 3B Ni ASTM 50mm |
| IQI | 3C Ni ASTM 50mm |
| IQI | DIN/EN FE 50MM-1 ISO6 |
| IQI | DIN/EN FE 50MM-1 ISO7 |
| IQI | DIN/EN FE 50MM-6 ISO12 |
| IQI | DIN/EN FE 50MM-10 ISO16 |
| IQI | DIN FE 50MM-13-19 |
| IQI | 1 FE EN 50MM EN462-1 |
| IQI | 6 FE EN 50MM EN462-1 |
| IQI | 10 FE EN 50MM EN462-1 |
| IQI | 13 FE EN 50MM EN462-1 |
| IQI | 10 FE EN 25MM EN462-1 |
| IQI | ASTM E 1025 & E 142 |
| IQI | H 1 FE EN EN462-2 |
| IQI | H 5 FE EN EN462-2 |
| IQI | H 9 FE EN EN462-2 |
| IQI | H 13 FE EN EN462-2 |
