商品の詳細:
|
| 正確さ: | 5% ± 2 振動ワード | センサー: | 1つの回転シアアクセラロメーター |
|---|---|---|---|
| 画面: | LCDディスプレイ3本半 | 信号出力: | AC 2Vピーク (フルスケールと負荷が10Kオーム以上) |
| 力: | 9Vラミネートバッテリー1は25時間連続で使用できます | ||
| ハイライト: | handheld vibration meter for machinery,vibration meter with fault detection,industrial vibration monitoring equipment |
||

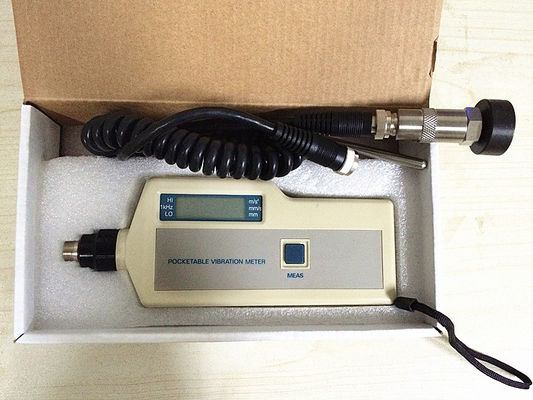

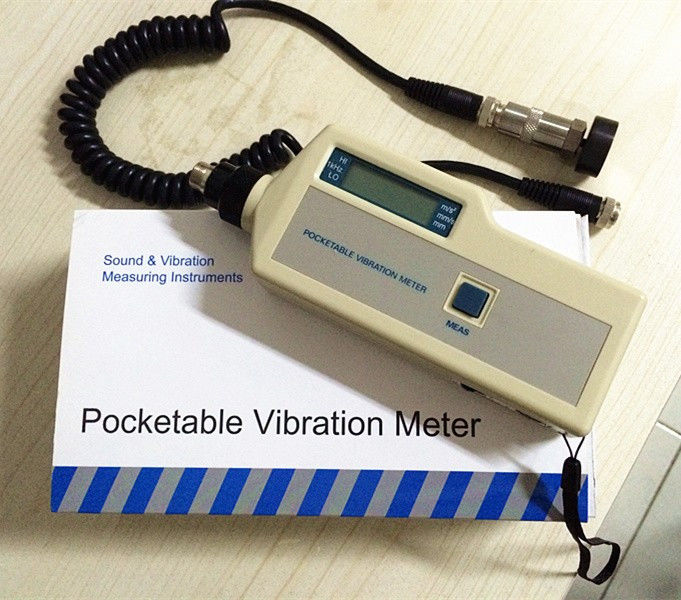

HG-6500BN Handheld Vibration Meter for Machinery Condition Monitoring & Fault Detection
Description:
HG-6500 Pocket vibration (temperature) instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).
| Model | Function | Frequency range |
| HG-6500BN | Acceleration, Velocity, Displacement | 10Hz ~ 10KHz |
Specifications
Sensors: one rotary shear accelerometer & Split charge amplifier built-in shear accelerometer
Range: Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
Speed of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)
Temperature 0 ℃ ~ 400 ℃
Accuracy: 5% ± 2 vibration words
Temperature 1% ± 1 word
Display: LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Body volume: 185mm × 68mm × 30mm
Weight: 200g
Standard Configuration:
Main body 1pc
Short Probe 1(only in-built type)
thermocouple transducer 1(only for –C type)
6F22 battery 1
Manual book 1
Quality card/Guarantee Card 1 each
Optional:
Long probe
earpiece
sheath
cable(for signal output)
