| 名前: | 磁気ワイヤロープ試験機 | 使用: | 磁束漏洩ロープ試験機 |
|---|---|---|---|
| 応用: | 採掘ロープ検査装置 | キーワード: | 磁気ワイヤロープ試験機 |
| ハイライト: | Magnetic wire rope tester HRD-120,Non-destructive testing equipment with warranty,Wire rope tester for industrial inspection |
||

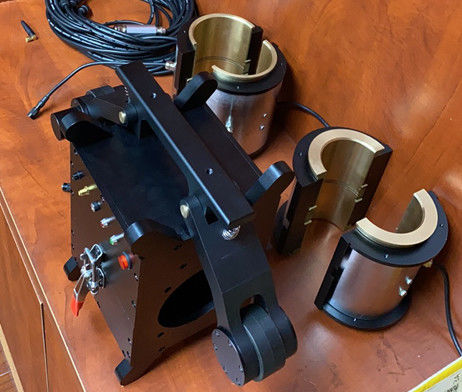

Magnetic Wire Rope Tester HRD-120
Core functionality
Electromagnetic/leakage magnetic detection (LF+LMA dual function): Axial saturated magnetization steel wire rope, capturing internal and external defects such as wire breakage, wear, rust, loose strands, wire jumping, deformation, material changes, etc.
LMA (metal cross-sectional area loss)+LF (magnetic leakage defect): Simultaneously quantitatively measure cross-sectional area loss and qualitatively measure local defects.
Online/offline detection: Move at a speed of 0-6m/s, without disassembling or stopping the machine for detection.
High precision positioning: with a position error of ± 0.2%, the accuracy of identifying broken wires can reach 99.99%.
Sound and light alarm+real-time display: defect real-time alarm, data dynamic visualization.
Data processing: USB directly connected to computer, automatically generates reports, stores, prints, compatible with Windows system.
Wide range adaptation: detection diameter Φ 1.5 – 300mm, equipped with different sensors.
Industrial protection: Waterproof, dustproof, shockproof, moisture-proof, suitable for harsh environments.
System configuration and model
All need to be customized: Wire rope flaw detection machine (48mm small - 78mm medium - 108mm large)
|
|
SN. |
Configure the name and model |
Quantity |
Mark |
|
Sensing unit |
1 |
• Integrated sensing unit • High speed reversible exciter • High conductivity signal concentrator • Display Hall magnetic sensitivity Group • Floating centering wear guide sleeve • High precision distance encoder • Automatic positioning wheel rolling device |
Encoder included |
|
|
2 |
• Real-time alarm (digital to analog conversion hi-fi) •AD analog-to-digital conversion module • Automatic noise rejection module • Defect audible and visual alarm module • Detection quality assurance module •DAQ plug and play mode |
Includes Wi-Fi capture |
||
|
|
3 |

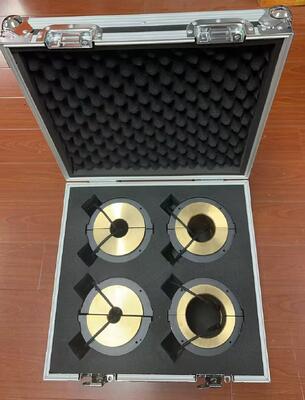

Replaceable lining sleeve |
5 sets |
Custom specifications are discussed separately |
|
Processing unit |
4 |
USB transmission cable |
1 pc |
Custom-made 20 meters long |
|
5 |
Wi-Fi antenna |
2 pcs |
One is for spare parts |
|
|
6 |
V3.0 version signal real-time processing software |
1 set |
|
|
|
7 |
Data acquisition Computer (Tablet type) |
1unit |
Included charger |
|
|
Accessory unit |
8 |
Custom instrument case |
1 pc |
Custom pull rod shift wheel |
|
9 |
All-in-one charger |
1 pc |
Red light: Charging Green: Full |
|
|
10 |
Flexible traction safety cable |
1 pc |
Flexible connections for sensing units |
|
|
11 |
Operation manual (related technical data) |
1 pc |
|
|
|
12 |
Certificate (Warranty card) |
1 pc |
|
|
|
13 |
Packing list |
1 pc |
|
Note: 1, among which 7 tablet dual-use computer is optional (according to demand, the cost is additional);
2, all sizes can be customized on demand (and can be accurately customized replaceable lining); Such as 48mm+24mm replaceable bushing.
