商品の詳細:
|
| 検出器の範囲: | 9V 300μm67.5V500μm;90V500μm | 感度: | 9V ̇90KΩ+5%;67.5V ¥125KΩ+5%;90V ¥400KΩ+5% |
|---|---|---|---|
| 電圧の精度: | +5% | バッテリー: | リポリ充電電池 11.1V/1100mA |
| 力: | ≤0.5W | 電圧表示: | 各電圧のLED表示 |
| バッテリーの充電: | 12VDC 充電器 | ||
| ハイライト: | portable pinhole detector for insulation,multi-voltage leak testing detector,insulating coating pinhole detector |
||

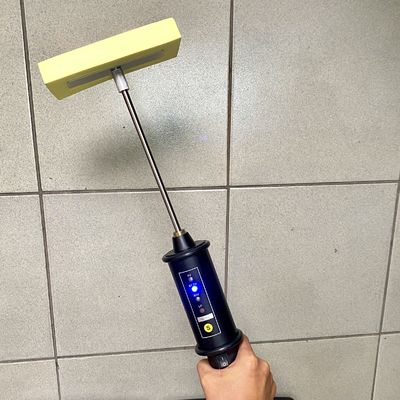

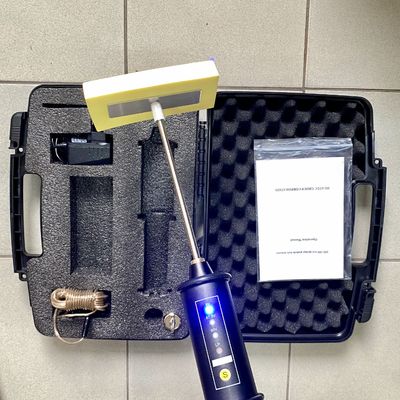

Utilizes the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester.
| Attribute | Value |
|---|---|
| Detector range | 9V ——300µm; 67.5V—500µm; 90V——500µm |
| Sensitivity | 9V——90KΩ+5%; 67.5V—125KΩ+5%; 90V——400KΩ+5% |
| Accuracy of voltage | +5% |
| Battery | Li-pol rechargeable battery 11.1V/1100mA |
| Power | ≤0.5W |
| Weight main unit | 500g |
| Size | 290×53×53mm |
| Voltage indication | LED indication for each voltage |
| Battery charging | 12VDC charger |
| Sponge size | 170×70×30mm |
| Detecting rod length | 195mm |
| Earth wire length | 4m |
