商品の詳細:
|
| 測定範囲: | 0～1500μm | 環境を使用して: | 0℃～50℃、20%RH～90%RH、磁気の強い場所を避けてください。 |
|---|---|---|---|
| 測定精度: | ±（3%H+1.5μm） | 解像度比: | 0.1μm/1μm |
| 最小曲率: | ラッパ 5mm、凹面 25mm | 湿度最も薄いマトリックス: | 0.4mm |
| ハイライト: | magnetic coating thickness gauge for steel,non magnetic coating thickness tester,iron coating thickness gauge with warranty |
||

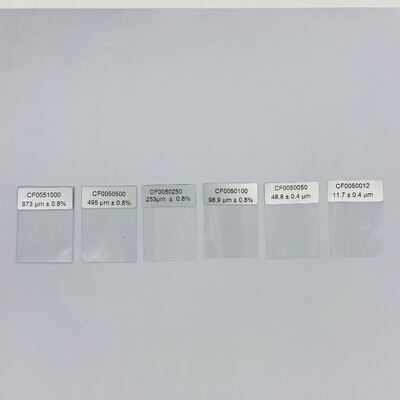

TG-1620 Magnetic Coating Thickness Gauge for Steel Iron Non Magnetic Coating
TG-1620 Coating thickness gauge, test Magnetic thickness method, can be nondestructively measuring magnetic metal matrix (such as: steel, iron, nickel) on non magnetic coatings thickness (such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, enamel, etc.)
Technical parameters:
| Measuring range | 0-1500μm |
| Using environment | 0℃-50℃ and 20%RH—90%RH,not strong magnetic place. |
| The thinnest matrix | 0.4mm |
| Measurement accuracy | ±(3%H+1.5μm) |
| Resolution ratio | 0.1μm /1μm |
| Minimum curvature |
bugle 5mm;concave 25mm |
| Minimum matrix | 18*15mm |
| Power | three (7) alkaline battery |
| Size | 126mm*64mm*28mm |
| Weight | 106g (excluding battery) |
TG-1620 Coating thickness characteristics
A, The use of alloy integrated probe, the world's leading technology
B, Simple operation, fast testing speed and high sensitivity.
C, Exquisite artificial integration design, easy to carry.
D, Two test methods: continuous testing (CONT INUE) and single (SINGLE) measurement.
E, Statistical functions: maximum (MAX), minimum (MIN), average (MEA)
F, Which can store 2000 measurement data (10 sets of data).
G, Can connect to the computer for communication, read out and store data for preservation or printing.
H, Two calibration modes: zero calibration and two point calibration.
I, There are beep prompts in operation process (single measurement mode).
J, Automatic identification of iron-based and non-ferrous base materials
K, Low voltage indication
L, Manual / automatic shutdown function
M, Super LCD display backlight, with screen rotation inversion function.
N, Unit conversion μm/mil
