商品の詳細:
|
| 測定範囲: | 0-1000um | 測定精度: | ±1-3%n または ±2.5um |
|---|---|---|---|
| 解像度比: | 0.1μm/1μm | 測定面積: | 6mm |
| 試料の最小厚さ: | 0.3mm | ||
| ハイライト: | digital coating thickness meter for petroleum,shipbuilding coating thickness gauge,non-destructive testing meter with warranty |
||

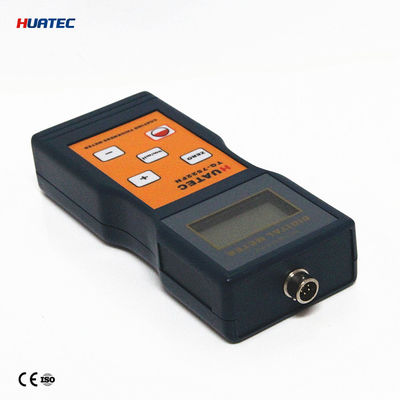

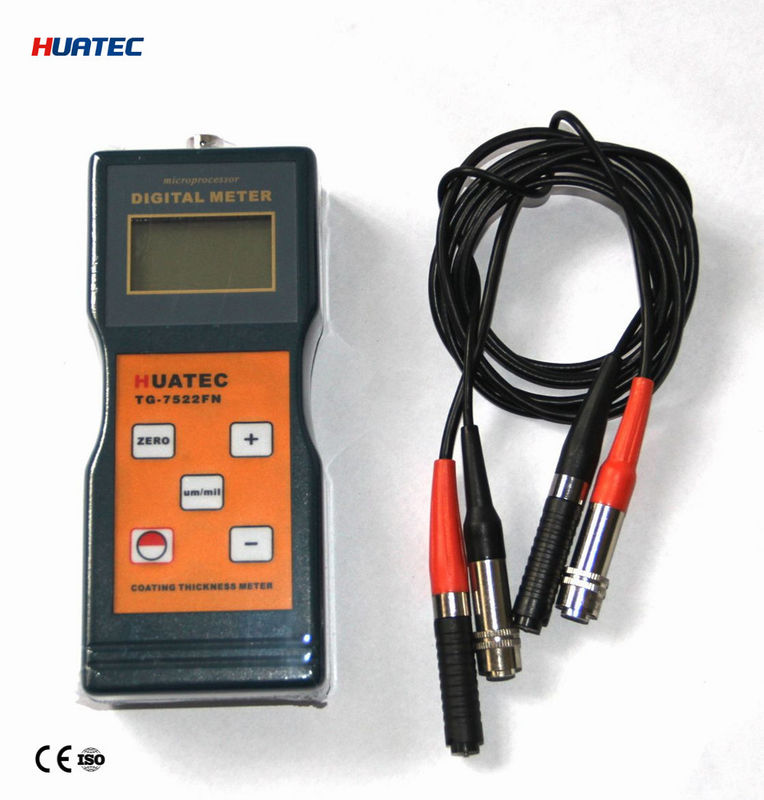

TG-7522FN Digital Coating Thickness Meter for Petroleum Shipbuilding Industry
Product synopsis
Application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Technical Parameters:
| Operating principle | magnetic induction/eddy current (F/NF) |
| Measuring range | 0-1000um |
| Resolution | 0.1/1 |
| Accuracy | ±1-3%n or ±2.5um |
| Min. measuring area | 6mm |
| Min. sample thickness |
0.3mm |
| Battery indicator | low battery indicator |
| Metric/ imperial | convertible |
| Power supply | 4x1.5V AA(UM-3)battery,
Auto power off |
| Operating conditions |
0-+45℃(32℉-104℉),≤90%RH |
| Dimensions | 160x68x32mm |
| weight | 250g(not including battery) |
| Optional accessories |
other range 0-200um to 15000um |
