商品の詳細:
|
| 接眼レンズ: | WF10X/ф6 | 目標: | 10X、20X、50X |
|---|---|---|---|
| 総拡大: | 100X-500X | 集中の範囲: | 25mm |
| 機械筒長: | 160mm | ||
| ハイライト: | portable metallurgical microscope,metallurgical microscope for large workpieces,vertical illumination metallurgical microscope |
||

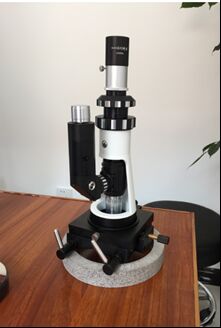

HSC-500 Portable Metallurgical Microscope Vertical Illumination for Large Workpieces
Product Description:
HSC-500 Portable Metallurgical Microscopes has vertical illumination light source.
Applicable to metallographic inspection of various work pieces which is large or unable to make sample.
No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the work piece.
This machine can identify different metal and alloy organization structure.
Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling the materials by factory, laboratory.
Main Parameters:
|
No. |
Item |
Specification |
|
1 |
Eyepiece |
WF10X/ф6 |
|
2 |
Objective |
10X, 20X,50X |
|
3 |
Total Magnification |
100X-500X |
|
4 |
Focusing range: |
25mm |
|
5 |
Mechanical tube length: |
160mm |
|
6 |
Power supply |
3.6v |
|
7 |
Weight |
N.W.: 0.75kg G.W.: 0.9kg |
|
8 |
Dimension |
Instrument dimension: 230X110X70(mm) |
Standard configuration:
|
No. |
Item |
Main Specification |
Unit |
Quantity |
|
1 |
Main unit |
HSC-500 |
Set |
1 |
|
2 |
Objective |
10X, 40X,50X (optional) |
Piece |
1 each |
|
3 |
Eyepiece |
10X |
Piece |
1 |
|
4 |
Illuminator |
Installed on the main body |
Piece |
1 |
|
5 |
Battery charger |
|
Piece |
1 |
|
6 |
Magnetic base |
|
Piece |
1 |
|
7 |
C mount adapter |
|
Piece |
1 |
|
8 |
Instruction manual |
|
Piece |
1 |
|
9 |
Calibration certificate |
|
Piece |
1 |
Optional parts:
Eyepiece: 12.5X
Objective: 50X
