商品の詳細:
|
| 画面: | 4桁、10mm LCD、青色バックライト付き | パラメータ: | ラ, Rz |
|---|---|---|---|
| 測定範囲: | Ra: 0.050-10.00um/1.000-400.0uinch Rz: 0.020-100.0um/0.780-4000uinch | 正確さ: | ≤±10% |
| ハイライト: | digital surface roughness meter with data storage,surface roughness tester with PC communication,non-destructive testing equipment with warranty |
||

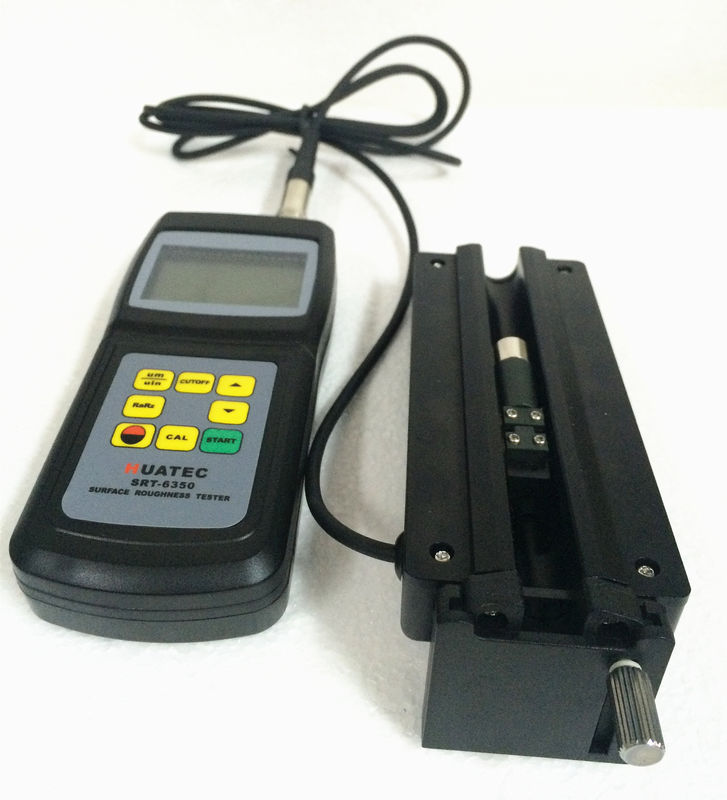

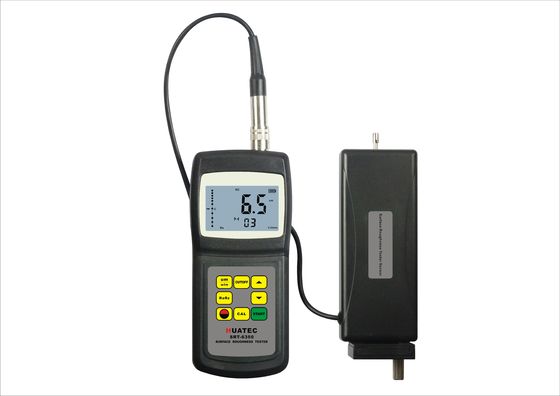

SRT-6350 Digital Surface Roughness Meter with PC Communication & Data Storage
Features:
* Surface roughness tester SRT6350 is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters.
* When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the separate probe.
* This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.
* The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz
* Highly sophisticated inductance sensor
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P
* Built-in lithium ion rechargeable battery and control circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C or USB interface.
*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.
*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
*Metric /Imperial Conversion
Specifications:
| Display |
4 digits, 10 mm LCD, with blue backlight |
| Parameters | Ra, Rz |
| Measuring Range |
Rz: 0.020-100.0um/0.780-4000uinch |
| Accuracy | ≤±10% |
| Fluctuation of display value | Not more than 6% |
| Sensor |
Test Principle: Inductance type Radius of Probe Pin: 5µm Material of Probe Pin: Diamond Dynamo-measurement of Probe: 4mN(0.4gf) Probe Angle: 90º Vertical Radius of Guiding Head: 48mm |
| Maximum driving stroke | 17.5mm/0.7inch |
| Cutoff length (l) | 0.25mm / 0.8mm / 2.5mm optional |
| Evaluation length | 1-5L |
| Driving speed |
sampling length = 0.25mm Vt=0.135mm/s sampling length = 0.8mm Vt=0.5mm/s sampling length = 2.5mm Vt=1mm/s returning Vt=1mm/s |
|
Profile digital filter |
Filtered Profile: RC Filtered Profile: PC-RC Filtered Profile: Gauss Non-Filtered Profile: D-P |
| Resolution |
0.001u m if reading ＜10 um 0.01 um if 10 um ≤reading ＜100 um 0.1 um if reading ≥100 um |
| Evaluation length | ( 1~5) cut-off optional |
| Power Li-ion battery | rechargeable |
| Operating conditions |
Temp. 0~40℃,Humidity <80% |
| Size&Weight |
140x57x48 mm (5.5x2.2x1.9 inch),about 420 g |
Standard Delivery:
Carrying case.................1pc
Main unit.........................1pc
Standard Sensor.............1pc
Standard Sample Plate...1pc
Power Adapter................1pc
Operation Manual...........1pc
Screwdriver.....................1pc
Adjustable Leg................1pc
Sensor Protector.............1pc
Optional Accessories:
1. Cable and Software for RS-232/USB
2. Extension Rod
3. Groove stylus
4. Curvature Probe
5. Measurement Stand
6. Bluetooth interface
