商品の詳細:
|
| 紫外線（軽い） -変化屋内温度25℃: | 6000uW/cm2 | 白色光の内容: | ≤20LUX |
|---|---|---|---|
| 380mmの深さでの照射面積: (≥1000uw/cm2): | Φ300mm | 変化間違い: | 0-40°C ±10% |
| 電源: | AC100- 240V、50/60Hz | 波長: | 室温 25°C 365nm±3nm (UVA) |
| 力: | 紫外線LED-12VA | 軽い配分の特徴: | 中央照明分布 |
| ハイライト: | handheld UV flashlight,6000μW/cm² black light,LED UV inspection tool |
||

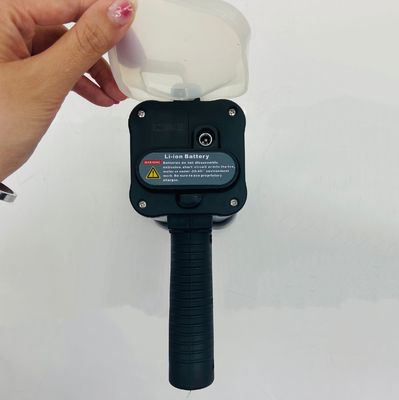

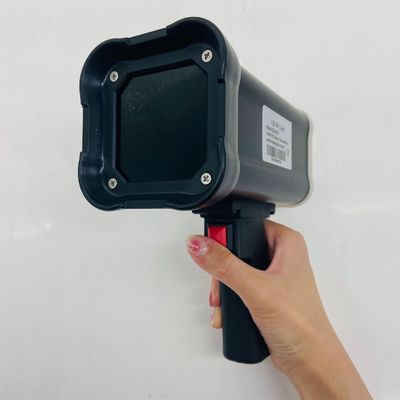

DG-6K 6000μW/cm² Handheld LED Black Light UV Flashlight
Features
Original imported light source UV LED.
UV-B content is 0.
Output black light irradiation intensity 6000uW / cm²
Only 560g with battery.
AC100-230V wide voltage input.
The temperature rise of continuous working outer surface is <8K (8 ℃).
With color filter glass, white light content is less than 20LUX.
|
Project |
Parameter / method |
|
Form |
Handheld |
|
UV(Light)-FLUX 25 ℃ Room temperature ,Calibration at 380mm |
6000uW/cm² |
|
UV White light leakage |
≤20LUX |
|
White light |
1200LUX |
|
Coverage area calibration at 380mm |
Approximately 300mm in diameter |
|
FLUX error |
0-40℃ ±10％ |
|
Light distribution characteristics |
Center light distribution |
|
power supply |
AC100-240V 50/60Hz |
|
power |
UV LED-12VA |
|
wavelength |
Room temperature 25℃ 365nm±3nm(UVA) |
|
Dimensions |
157.5mm(W)*76mm(D)*177mm(H) |
|
weight |
560g With battery |
|
battery capacity |
2200mA/H 12.6V |
|
Charging time |
2-3H |
|
Battery life (cumulative time) |
UV LED 2-3H |
