商品の詳細:
|
| 輝度: | 320000LUX | 総消費電力量: | 160W |
|---|---|---|---|
| 暗闇: | >4.5D | 測定範囲: | 0.00-5.00D |
| サンプリング時間: | 0.8秒 | 光孔直径: | 2mm |
| 読書安定性: | ±0.02 | ||
| ハイライト: | Industrial radiographic film densitometer,NDT film inspection viewer,Radiographic film evaluation meter |
||

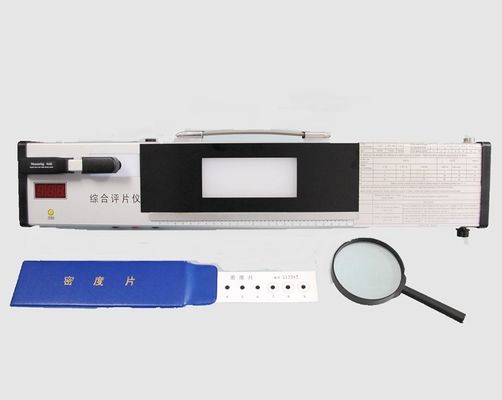

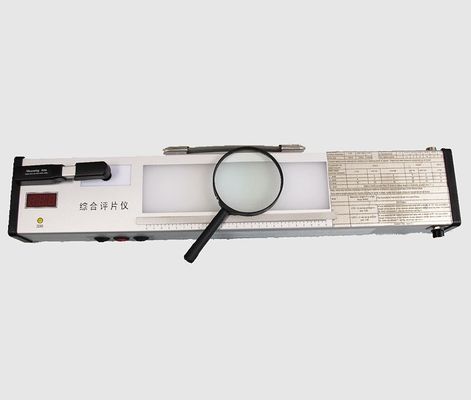

HFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film Inspection
The densitometer module is part of HFU-600 Film Viewer Film Densitometer all in one Film Evaluation Meter. It is a quality product of computer-assisted high technology. It boasts accurate readings, high stability and easy operation. It can be widely applied to the fields such as nondestructive testing, publishing industry and medical science etc. The film evaluation meter HFU-600 is equipped with a density tablet for testing its precision.
The Film viewer module is part of HFU-600 Film Viewer Film Densitometer all in one Film Evaluation Meter. It uses powerful LED light, has new advantage of low luminance, poor contrast and short lifetime. It is developed absolutely according to the Norm of ISO 5580 Industrial radiographic illuminators minimum requirements.
Standard delivery:
| Name | Quantity |
| Power cable | 1pc |
| Density tablet | 1pcs |
| 2A fuse | 2 pcs |
| Calibration certificate | 1 pc |
| Foot switcher | 1 pc |
| Light covering board | 1 pc |
| Magnifier | 1 pc |
| Instruction manual | 1 pc |
| Certificate | 1 pc |
Technical parameters:
1,Brightness:320000LUX
2,Total power consumption: 160W
3,Darkness: >4.5D
4,Window size: 255×70(mm)
5. Power: AC220V(±10%)/50Hz
6,Display: three digits
7,Measuring range: 0.00-5.00D
8,Sampling time: 0.8 seconds
9,Light hole diameter: 2mm
10,Reading stability ±0.02
Power consumption: about 10W
12,Uncertainty: 0.00-3.00≤0.02D
3.00-5.00≤0.04D
13,Working environment: Temp: 0℃-40℃,Humidity: ≤85%
14,Size: 300×110×58(mm)
15,Weight: about 1.5Kg
