商品の詳細:
|
| 測定範囲: | 1.0 ～640mm | 得: | オートマティック 0 ̇96dB,ペース 1dB |
|---|---|---|---|
| 音速調整範囲: | 400～9999 m/s | 持ち上がる間隔: | 5mm (アルミ),4mm (炭素鋼),3mm (不?? 鋼) |
| 帯域幅: | 2.5MHz~6MHz | 打ち上げ: | ±600V_400Hz_125ns |
| 測定モード: | シングルエコー (I-E),ダブルエコー (E-E) | ||
| ハイライト: | explosion proof thickness meter,high temperature electromagnetic thickness gauge,non-contact metal coating thickness meter |
||

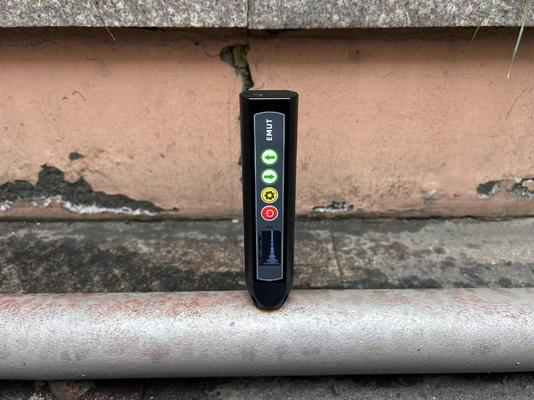

TG-140EX Explosion Proof High Temperature Pen Type Non-Contact Electromagnetic Thickness Meter for Coated Metal
TG-140EX Explosion proof A scan electromagnetic ultrasonic thickness gauge is a small pen type, air coupling thickness measurement gauge that does not require acoustic coupling agents. Widely used for thickness measurement of metal or magnetic materials.
Product Features
l Small size and easy to carry.
l The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement.
l It is insensitive to the coating and can realize the thickness measurement of coated workpiece.
l No acoustic coupling agent is required, it is suitable for thickness measurement of high-temperature workpiece.
Basic Parameters
|
80MSPS |
|
|
Bandwidth |
2.5MHz～6MHz |
|
Launch |
±600V_400Hz_125ns |
|
Gain |
Automatic 0～96dB,pace 1dB |
|
Measurement accuracy |
±0.01mm |
|
Sound velocity range |
400～9999 m/s |
|
Effective range |
1.0～640 mm |
|
Average level |
L,M,H three-level adjustable |
|
Lifting distance |
5mm(Aluminum), 4mm(Carbon steel), 3mm(Stainless steel) |
|
Measurement range |
Measure carbon steel — 1X:160mm 2X:320mm 3X:640mm |
|
Measurement type |
Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials |
|
Measurement channel |
Thin parts, common, bars |
|
Measurement mode |
Single echo(I-E), Dual echo(E-E) |
|
Search mode |
Frontier-Frontier mode, Wave crest-Wave crest mode, Wave crest-Frontier mode |
|
Auxiliary functions |
Auto freeze, Auto gain, Auto sleep, A-Scan waveform display |
|
Revised function |
Gate height adjustment, delayed fade adjustment, manual gain adjustment, sound velocity calibration, high temperature compensation |
|
Communication Interface |
RS-485 or USB2.0 |
|
Charger |
5V2A, Standard Type-C interface |
|
Display screen |
1.47 inch 320× 172 IPS_LCD |
|
Dimension |
178.4 mm× 42 mm× 32 mm |
|
Battery life |
3.7V 3400mAh Lithium battery, 6 hours of battery life |
|
Bare weight |
A Metal shell: 358g B Injection molded shell: 255g C Injection molded + quick release: 289g |
Standard Configurations
|
Serial number |
Name |
Quantity |
Remark |
|
1 |
Host TG-140EX |
1 |
|
|
2 |
Normal temperature probe |
1 |
4MHz,Φ42mm*32mm |
|
3 |
Charging data cable |
1 |
|
|
4 |
Charging plug |
1 |
|
|
5 |
Manual&calibration certificate |
1 |
|
|
6 |
Iron based test block |
1 |
|
|
7 |
Aluminum based test block |
1 |
|
|
8 |
Packing box |
1 |
|
Optional Configuration (You can choose to order according to your needs, which is not included in the standard configuration)
|
Serial number |
Name |
Quantity |
Remark |
|
1 |
High temperature probe |
1 |
4MHz,Φ33mm*40mm |
|
2 |
Small diameter normal temperature probe |
1 |
4MHz,Φ13mm*36mm |
|
3 |
Large diameter normal temperature probe |
1 |
4MHz,Φ40mm*60mm |
