商品の詳細:
|
| ロープの直径: | ¢6¢¢40ミリ | 精度等級: | 最大機能の3~6% (ロープの形状と特徴によって異なります). |
|---|---|---|---|
| 測定精度: | 3% 未満のエラー | ||
| ハイライト: | Non-dismantling rope tension gauge,Steel cable testing gauge,High-strength rope tension tester |
||

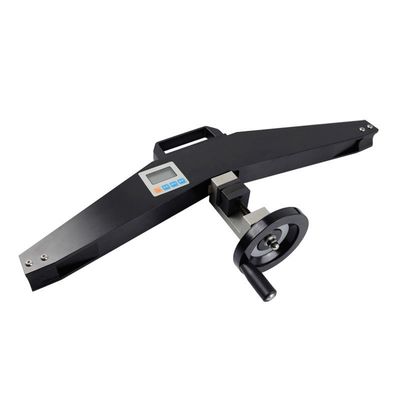

HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing
Main usage and application
Ropes and Steel Wire Ropes Tension Testing Instrument HUATEC HRT-DS can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, cable way industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.
Product characteristics
Specifications and model
| Model | HRT-DS-20KN | |||||||
| Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Diameter | Φ6 | Φ8 | Φ9 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 |
| Load division value(KN) | 0.01 | |||||||
| Output connector | Rs232 9-hole socket | |||||||
| Power | Rechargeable battery charger (charging voltage 100V～240V) | |||||||
| Working temperature | 5℃～35℃ | |||||||
| Transport temperature | -10℃～60℃ | |||||||
| Relative humidity | 15%～80%RH | |||||||
| Working environment | No vibration focus and corrosive media around | |||||||
| Net weight | 4.7kg | |||||||
| Dimension | 650×375×100(mm) | |||||||
| Model | HRT-DS-50KN | |||||||
| Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Diameter | Φ12 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ26 |
| Load division value(KN) | 0.01 | |||||||
| Output connector | Rs232 9-hole socket | |||||||
| Power | Rechargeable battery charger (charging voltage 100V～240V) | |||||||
| Working temperature | 5℃～35℃ | |||||||
| Transport temperature | -10℃～60℃ | |||||||
| Relative humidity | 15%～80%RH | |||||||
| Working environment | No vibration focus and corrosive media around | |||||||
| Net weight | 4.7kg | |||||||
| Dimension | 650×375×100(mm) | |||||||
| Model | HRT-DS-100KN | |||||||
| Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Diameter | Φ20 | Φ22 | Φ24 | Φ26 | Φ28 | Φ30 | Φ32 | Φ34 |
| Load division value(KN) | 0.1 | |||||||
| Output connector | Rs232 9-hole socket | |||||||
| Power | Rechargeable battery charger (charging voltage 100V～240V) | |||||||
| Working temperature | 5℃～35℃ | |||||||
| Transport temperature | -10℃～60℃ | |||||||
| Relative humidity | 15%～80%RH | |||||||
| Working environment | No vibration focus and corrosive media around | |||||||
| Net weight | 7kg | |||||||
| Dimension | 650×375×100(mm) | |||||||
| Model | HRT-DS-200KN | |||||||
| Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Diameter | Φ26 | Φ28 | Φ30 | Φ32 | Φ34 | Φ36 | Φ38 | Φ40 |
| Load division value(KN) | 0.1 | |||||||
| Output connector | Rs232 9-hole socket | |||||||
| Power | Rechargeable battery charger (charging voltage 100V～240V) | |||||||
| Working temperature | 5℃～35℃ | |||||||
| Transport temperature | -10℃～60℃ | |||||||
| Relative humidity | 15%～80%RH | |||||||
| Working environment | No vibration focus and corrosive media around | |||||||
| Net weight | 7kg | |||||||
| Dimension | 650×375×100(mm) | |||||||
HRT-DS-20KN, HRT-DS-50KN Packing list
| User manual | 1 |
| Check certificate | 1 |
| Warranty card | 1 |
| Certificate | 1 |
| Software | 1 |
| Charger | 1 |
| Aluminum key | 1 |
| RS232 Cable | 1 |
| Tension Meter | 1 |
| Hand wheel | 1 |
| Cap nut and Flat key | 1 |
| Aluminum box | 1 |
| Dryer | 1 |
HRT-DS-100KN, HRT-DS-200KN Packing list
| User manual | 1 |
| Check certificate | 1 |
| Warranty card | 1 |
| Certificate | 1 |
| software | 1 |
| charger | 1 |
| Aluminum key | 1 |
| Rs232 cable | 1 |
| Tension meter | 1 |
| Aluminum box | 1 |
| Dryer | 1 |
