商品の詳細:
|
| 管の電圧 (kVp): | 160KV | フィラメント特性(v): | I fmax=4.5A，Uf=5±1 |
|---|---|---|---|
| 目標の角度: | 25° | 最大連続放熱量(w): | 500 |
| わずかな焦点点の価値: | 0.8 | 固有ろ過量(mmAl): | 1.0 |
| ハイライト: | 160KV X-ray tube for security scanners,0.8mm focal spot X-ray tube,500W X-ray tube for flaw detectors |
||

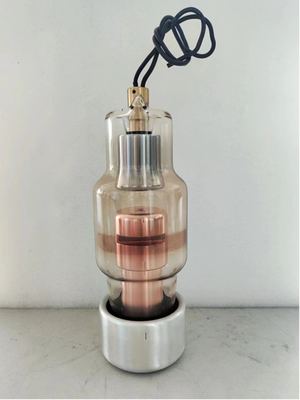

HXC-16B X-ray Tube 0.8mm Focal Spot 160KV 500W for Security Scanner & Flaw Detector
APP’LICATION:
It is mainly used for security inspection X-ray machine and industry x ray flaw detector also.
It is designed for main applications used in x-ray equipment Heimann Smith for security check
TECHNICAL DATA
|
Nominal X-ray tube voltage(kv) |
Filament characteristic(v) |
target |
|
|
160 |
I fmax=4.5A,Uf=5±1 |
material |
angle |
|
W |
25° |
||
|
Maximum continuous heat dissipation (w) |
Nominal focal spot value |
Weight(kg) |
Inherent filtration(mmAl) |
|
500 |
0.8 |
≤2 |
1.0 |
