商品の詳細:
|
| 管の電圧 (kVp): | 150kV | アノード速度 (r/min): | 2700(50Hz) 3200(60Hz) 9700(180Hz) |
|---|---|---|---|
| 固有ろ過量(mmAl) （75kV）: | ≥1.5 | 角度: | 12° |
| わずかな焦点点の価値: | 0.6（小） 1.2（大） | 最大連続放熱量(W): | 1800 |
| 最大アノード熱量(kJ): | 445(600kHU) | ||
| ハイライト: | High-Speed Rotating Anode X-ray Tube,Medical X-ray Tube 150kV,Diagnostic Imaging X-ray Tube |
||

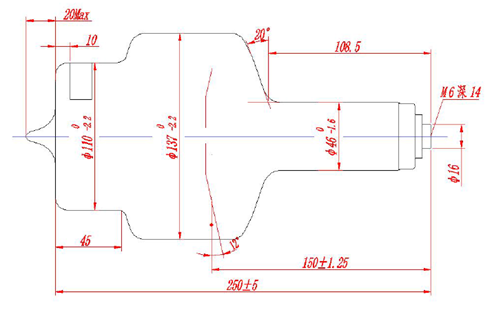

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging
一.SCOPE:
It is used together with medical diagnostic X-ray generator for medical X-ray diagnosis.
|
nominal X-ray tube voltage(kV) |
filament characteristics(V) |
target |
||
|
material |
angle |
diameter |
||
|
150 |
If max=5.5A ,Uf=9±2(small) |
Re-W |
12° |
100 |
|
If max=5.5A ,Uf=13.5±2(big) |
||||
|
anode speed (r/min) |
Inherent filtration(mmAl) (75kV) |
Weight (≤kg) |
nominal focal spot value |
|
2700(50Hz) 3200(60Hz) 9700(180Hz) |
≥1.5 |
2 |
0.6(small) |
|
1.2(big) |
|
nominal anode input power(kW) (0.1s) |
maximum anode heat content(kJ) |
maximum continuous heat dissipation(W) |
|
22/55(50Hz) 25/60(60Hz) 40/100(180Hz) |
445(600kHU) |
1800 |
