商品の詳細:
|
| 入力電圧: | 3.7-4.2V | 出力電力: | 3W |
|---|---|---|---|
| 38cm距離における紫外線の強度: | ≥13000uW/cm2 | 放射線被ばれた領域38cm: | ¢45mm |
| 光入口窓の直径: | ¢34 | モデル: | 4800mAh |
| 充電時間: | ≥6時間 | 労働時間: | ≥5h |
| ハイライト: | Pocket LED UV torch lamp,UV torch lamp long working hours,Non-destructive testing UV lamp |
||

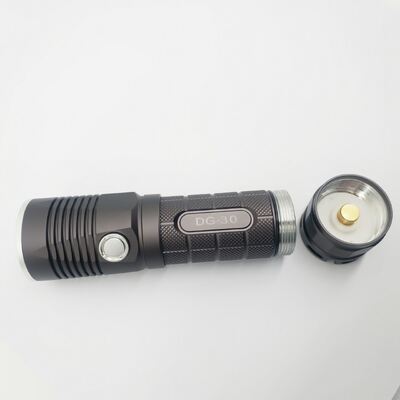

Pocket LED Ultraviolet Torch Lamp Long Working Hours and Stable Quality
1· Introduction
DG-30 pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).
The National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015) requires Black Light Lamp / Ultraviolet Lamp as follows:
2.Technical Parameters
|
Model |
DG-30 | |
| Lamp Beads | NICHIA 365nm Ultraviolet band LED Lamp Beads | |
| Lamp Bead Amount | 1 | |
| Input Voltage | 3.7-4.2V | |
| Output Power | 3W | |
| Intensity of Ultraviolet Ray at 38cm Distance |
≥13000 uW/cm2 |
|
| Irradiated Area at 38cm Distance | ￠45mm | |
| Diameter of Light Inlet Window | ￠34 | |
| Battery Model | ICR 26650 | |
| Battery Capacity | 4800mAh | |
| Number of Battery | 1 | |
| Charging Time | ≥6H | |
| Working Hours | ≥5H | |
| Battery Life | More than 500 time for fully charge and discharge | |
| Outline Dimension | A | ￠40 mm |
| B | ￠33 mm | |
| L | 144 mm | |
| Weight(including Battery) | 240g | |
3. Main Application
Other Application
4. Characteristic and Performance
Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element, spectrum is pure.

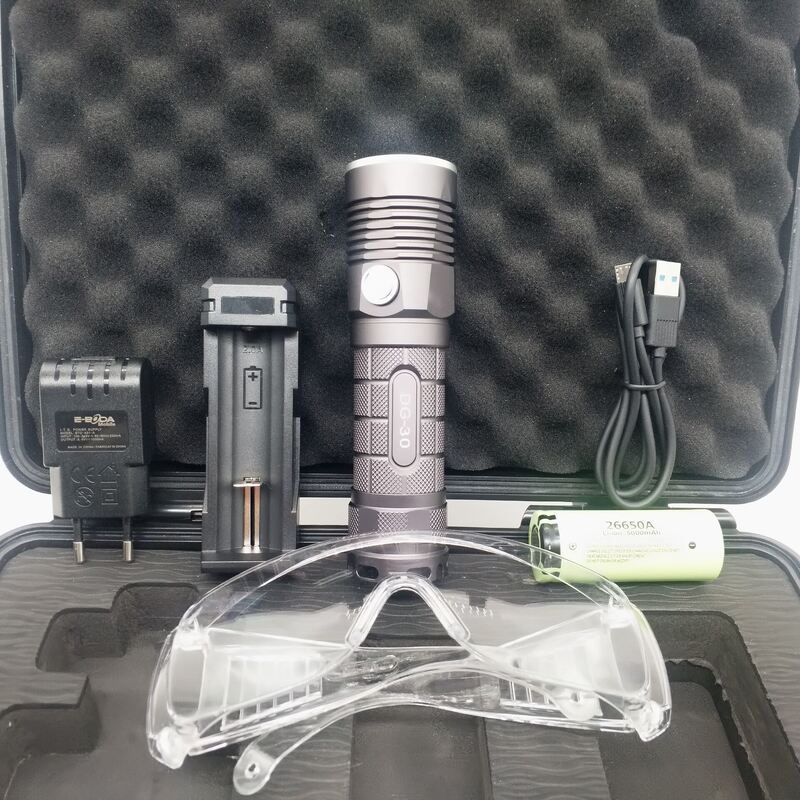

5. Configuration List
| DG-30 | |
| Main Device | 1 |
| Battery | 1 |

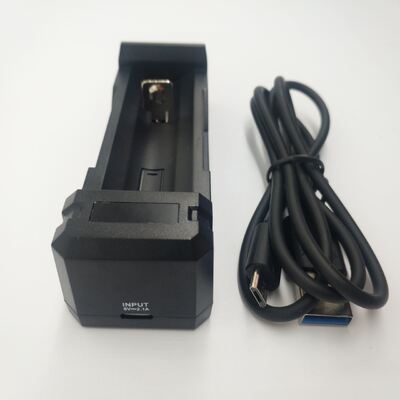

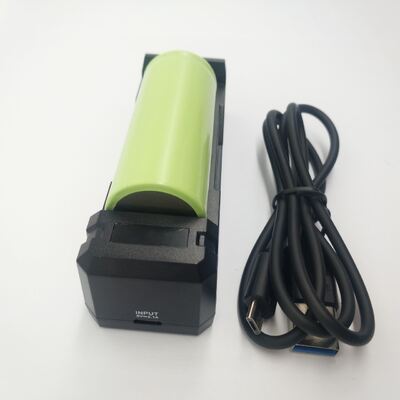

| Charger | 1 |

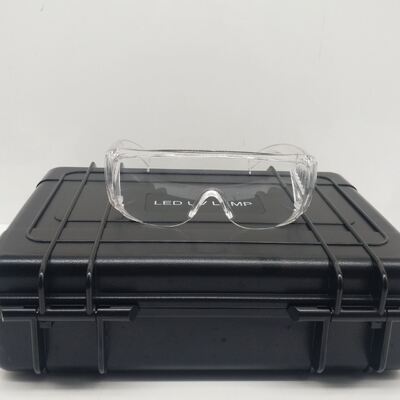

| Suit case | 1 |
| Operating Manual | 1 |
| Certification | 1 |
| Warranty Card | 1 |
| Packing List | 1 |
Optional Configuration
