商品の詳細:
|
| 材料標準: | ISO 10474-3.1.B、JIS G 0415-3.1.B | 深さ: | 150μm |
|---|---|---|---|
| 幅の目標値: | 0.5μm、1.0μ、1.5μ | 試験規格: | ISO 3452-3:1998(E)、JB/T6064 |
| ハイライト: | Multi-width penetrant testing specimen,DPI NDT inspection reference block,Non-destructive testing equipment with warranty |
||

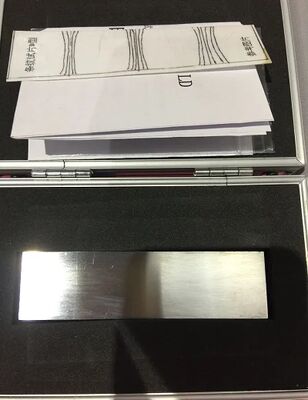

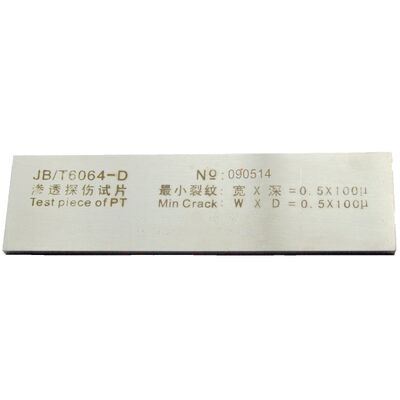

YM-D Multi-Width Penetrant Testing Specimen for DPI NDT Inspection Reference Block
All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled
| Material standard | according to ISO 10474-3.1.B,JIS G 0415-3.1.B |
| Width target value | 0.5µm,1.0μ and 1.5μ |
| Depth | 150µm |
| Test standard | ISO 3452-3:1998(E),JB/T6064 |
