商品の詳細:
|
| ウィンドウサイズ: | 430×350mm | ランプソース: | 導かれる色 |
|---|---|---|---|
| 暗闇: | 2.9-3.5D | 輝度: | 1260～10900cd/m2 |
| ライト温度: | >9000K,青い光 | 視聴者の均一性: | ≥90% |
| ハイライト: | ultra-thin industrial x-ray viewer,NDT radiographic negative viewing lamp,LED x-ray film viewer |
||

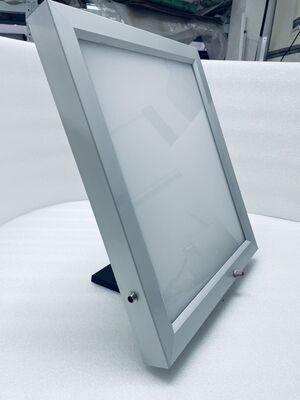

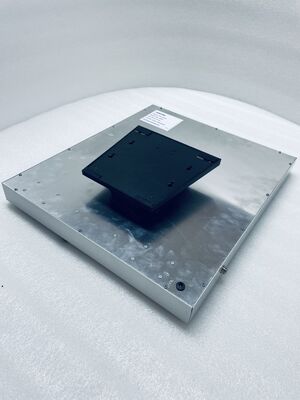

HFV-700B Ultra-thin Industrial X-ray Film Viewer LED NDT Radiographic Negative Viewing Lamp
The excellent selected material
the viewer’s viewing screen and optical path material are all adopted of Acrylic glass plate manufactured by Japan Mitsubishi Liyan Co. Beyond the glass has a light transmittance and durability to ensure the non-deformation, do not change color.
Technical Specifications
|
Dimensions(W×H×D) |
495×430mm |
|
Window size |
430×350mm |
|
Lamp source |
Color LED |
|
Power Supply |
200W |
|
Darkness |
2.9-3.5D |
|
Brightness |
1260- 10900cd/m2 |
|
Light working life time |
>100000 hours |
|
Light temperature |
>9000K, blue light |
|
Uniformity of viewer |
≥90% |
|
Light adjustment |
Knob adjustment |
|
Power: |
220V 50Hz |
|
Weight |
6.5Kg |
|
Start way: |
Foot switch |
Using the latest technology abroad
It adopts the newest backlighting technology of color LED
Standards conforming: GB/T4730-2005, GB/T7903-1999
