商品の詳細:
|
| 核体図書館: | セシウムヨ化物とリチウムフッ化物 | エネルギー反応: | 40kV~3MeV |
|---|---|---|---|
| 線量率範囲: | 0.01μSv/h~5mSv/h | 相対誤差: | <±20% (Cs-137) |
| 集積線量: | 0.01μSv~9.9Sv(X/γ) | 中性子 (オプション): | ≥0.3cps/(uSv/h) (相対Cf-252) |
| 労働環境: | 温度:-20°C~+50°C湿度:<95%R.H ((非凝縮) | ||
| ハイライト: | Portable scintillation radiation meter,Cesium iodide radiation detector,Customs port radiation survey equipment |
||

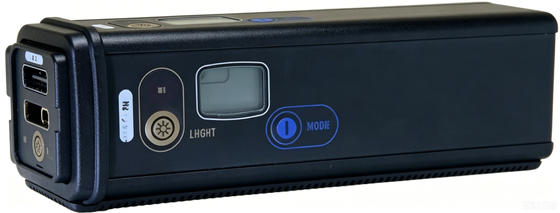

FJ31-7103GN Portable Scintillation Radiation Survey Meter Cesium Iodide Detector For Customs Port Emergency Inspection
I. product introduction
FJ31-7103GN is a multifunctional radiometric instrument with high sensitivity for rapid detection of gamma and neutron (selected) in unknown radioactive environment. It is the first choice alarm instrument used by environmental monitoring, homeland security, border ports, commodity inspection, customs, airport, fire control, emergency rescue, chemical defense force and other departments for routine survey and search for weak radioactive sources. This instrument can not only carry on all-weather monitoring and measurement alarm to radiation environment dose rate and dose, but also has powerful wireless transmission and integrated management function of background software.
2. Performance indicators
| Overall dimensions | 100×57×32mm |
| weight | About 300g |
| detector | Cesium iodide and lithium fluoride |
| Energy response | 40kev~3MeV |
| Dose rate range | 0.01μSv/h~5mSv/h |
| Relative error | <±20%(Cs-137) |
| Cumulative dose | 0.01μSv~9.9Sv(X/γ) |
| Neutrons (optional) | ≥0.3cps/(uSv/h) (relative Cf-252) |
| work environment | temperature:-20℃~+50℃ humidity:<95%R.H(Non - Condensing) |
| Protection level | IP65 |
| communication | Data can be downloaded through bluetooth /WIFI/USB communication interface for data management and networking |
| power types | Two no.5 alkaline batteries |
3. Main features
• High sensitivity cesium iodide scintillation crystal and lithium fluoride detector
•Compact design and measurement of multiple gamma rays: rapid alarm for chi-square and gamma rays in 2 seconds, and neutron ray alarm in 2 seconds
• double-button operation with OLED LCD, easy to operate and flexible to set up
• strong and explosion-proof, suitable for any harsh environment: IP65 protection grade
• vibration, sound and light alarm for complex environment
• support bluetooth wireless communication: real-time data, alarm transmission and historical record download, facilitating system integration
• green and low energy consumption: two no.5 civilian alkaline batteries can be used continuously for 200 hours
