商品の詳細:
|
| 最高の輝度: | >70,000 Cd/m2 | フィルム密度: | <4.0D 検査報告によると |
|---|---|---|---|
| 表面温度: | <18> | 均一見る区域: | 98% フルスクリーン |
| ディマーコントロール: | 連続的な0%から100% | 制御モード: | マニュアル+踏みスイッチ |
| ハイライト: | LED NDT film viewer with densitometer,radiographic viewing lamp 70000cd/㎡,all-in-one NDT equipment with warranty |
||

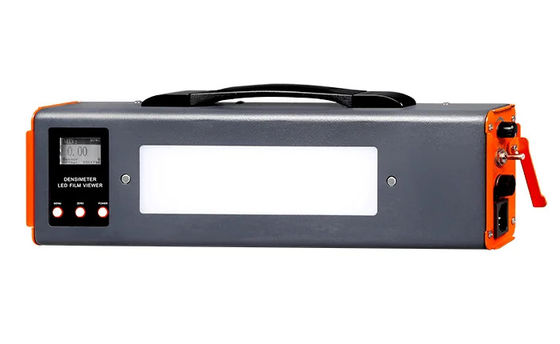

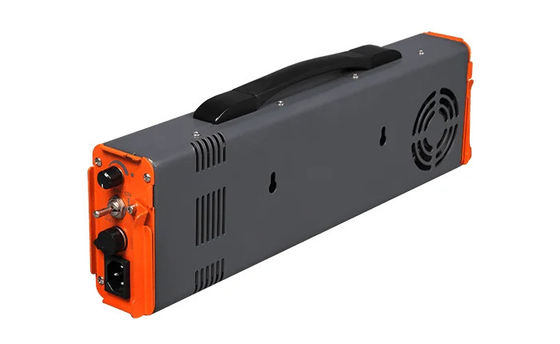

HFV-2206M All-in-one LED NDT Film Viewer with Built-in Densitometer 70000cd/㎡ 0~4.0D Radiographic Viewing Lamp
Features:
Maximum Light Intensity: > 70,000cd/㎡
Easily View < 4. 0 Density
Pure White LED Light
50,000 Hour Lamp Life
Low Power Consumption
Fan cooling
Foot Switch
Uniform Viewing Area: 98% Full Screen
Dimmer Control: 0% to 100% continuous
Surface temperature: <18°
Built-desktop stand
Design: Modern, Stylish and Simple
Power Requirements: 85-264VAC/47-60Hz
The power adapter: AC: 90-264VAC / 47-63Hz DC: 12V 5A
Safety Regulation and Electromagnetic Compatibility
Specifications:
Package Contents:
LED viewer with densitometer HFV-2260M 1pc
Foot switch 1pc
AC power cord 1pc
Viewing mask 1pc
Magnetic film holder 2pcs
Magnetic ruler 1pc
User's manual 1pc
Calibration certificate 1pc
Trouble Cause of the fault:
The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.
