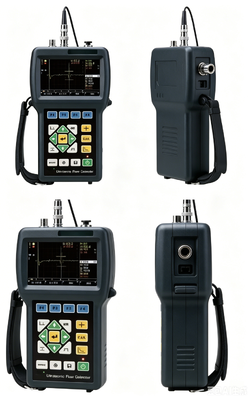

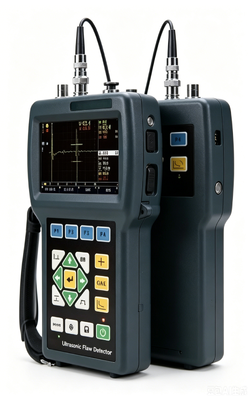

FD-1002 Ultrasonic Flaw Detector 4.3 Inch WVGA TFT Display IP54 Lightweight NDT Testing Equipment
The FD-1002 is a light-weight instrument with excellent performance which accumulates the experiences of 50 years for making ultrasonic instruments. This instrument is EN12668-1:2010 compliance and has an industrial-leveled TFT display with full WVGA(800×480) resolution providing superior visibility in all lighting conditions, including direct sunshine.
Weighing only 0.9kg, square wave excitation, full WVGA resolution TFT display and strong flaw detecting capabilities make it superior when compared with other similar products.
Specifications:
|
Transmitter Pulse |
Square Wave Pulse,Transmitter Pulse Voltage:25～250V, continuously adjustable with 25V increments |
|
Test Modes |
Pulse echo and dual transmission |
|
Damping |
400,80 Ohm |
|
Frequency |
Broadband/narrowband optional.Broadband:0.5～20MHz. Narrowband:1.5～3MHz |
|
Gain |
0.0～110.0dB.Steps as 0.1/1.0/2.0/6.0dB |
|
Material Velocity |
1000～15000m/s continuously adjustable.Set-in 30 common material velocities selectable |
|
Test Range |
0.0～10000mm longitudinal wave at steel velocity. Range continuously variable with minimum 0.1mm increments |
|
Rectification |
Positive halfwave, negative halfwave, full wave, RF |
|
Alarm |
Real-time alarm signal, positive and negative thresholds, minimum depth, DAC alarm optional |
|
Measuring Mode:Select front edge or peak of pulse wave in gate |
|
|
Display |
4.3" industrial-leveled TFT color LCD with 800×480 WVGA resolution |
|
Pulse Shift |
-7.5～3000μs |
|
Probe Zero |
0～999.9μs |
|
Pulse Repetition Frequency |
25～800Hz, auto adjustment mode |
|
Vertical Linearity Accuracy |
≤3% |
|
Horizontal Linearity Accuracy |
≤0.2% |
|
Surplus Sensitivity |
≥60dB(200Ф2 flat bottom hole) |
|
Resolutions |
≥36dB(5P14) |
|
Dynamic Range |
≥32dB |
|
Reject |
(0～90)% |
|
Electric Noise Level |
<10% |
|
Interface |
Q9 transducer cable connectors |
|
USB HOST |
|
|
Power Supply |
Large-capacity lithium battery without memory effect; Battery Life: More than 8 hours |
|
Built-in charger, AC Mains 220V |
|
|
Dust/Splash /Water-proof |
meets IP54 standard |
|
Standards |
EN12668-1 compliance |
|
Conform to JB/T 10061-1999 standard |
|
|
Environmental Temperature |
-30～50℃ |
|
Relative Humidity |
20%～95%RH |
|
Weight |
0.9Kg(with battery and built-in charger) |
|
Dimension |
TOP:215mm×126mm×53mm |
|
bottom:215mm×104mm×42mm |
Features:
● Advanced circuitry, 640MHz sampling frequency and 800×480 full WVGA resolution assure quick and accurate display and analysis on defect signals even when the signals are weak.
● Using the advanced tunable square wave excitation technology, the FD-1002 provides excellent penetration and high signal-to-noise ratio when detecting special composite materials, highly-attenuated or thick work-pieces.
● 4.3 inches display, set-in battery and charger, but only 0.9kg in weight which make it easy to operate and carry along.
● The design meets the standard of IP54 certification and compatible with EN 12668:2000 standard.
● With full WVGA TFT display at industrial level, this instrument offers fine images at different angles.
● Optimized panel, user-friendly design for the menu, easy and fast to operate no matter you use the left hand or right hand. Various input modes, English menu.
● Auto-calibration function including fast calibrating material velocity, probe delay and probe angle.
● Zoom function for in-gate waveform enables users to observe the waveform detail conveniently. Zoom function for waveform display area and optimized height-to-width rate of the screen ensure echo with higher resolution.
● DAC: Easy to make, correct, store and recall DAC.
● Built-in intelligent lithium battery charger. Power supplied by battery or AC mains and it can automatically display the power supply modes. Auto switch between “charge” and “work”.
● Long battery life of over 8 hours ensures your continuous work.
● USB port for software updating, data transferring and printing and access to devises such as mouse, keyboard and U-disk.
Standard delivery
|
No. |
Description |
Model |
Quantity |
|
1 |
FD-1002 |
1 set |
|
|
2 |
Power adaptor |
SPQ-1002 |
1 piece |
|
3 |
Lithium battery |
DC-19 |
1 piece |
|
4 |
Contact probe |
2.5MHz 20mm |
1 piece |
|
5 |
Angle probe |
2.5MHz 13×13 45D |
1 piece |
|
6 |
Probe cable |
BNC-BNC |
2 pieces |
|
7 |
AC power cable(Power adapter) |
JLX-1008 |
1 piece |
|
8 |
Cross screwdriver |
LSD2-GT2 |
|
|
9 |
Host box
|
ZJX-1002 |
1 piece |
|
10 |
Host haversack |
BD-1002 |
1 piece |
|
11 |
Bag |
GZD-1002 |
1 piece |
|
12 |
Operating manual |
|
1 copy |
|
13 |
Comm program (Memory DISK) |
|
1 copy |
|
14 |
HUATEC Certificate |
|
1 copy |
|
15 |
Packing list |
|
1 copy |
|
16 |
Warranty card |
|
1 copy |
