商品の詳細:
|
| パルス繰り返し頻度: | 10〜2000Hz | 検知範囲: | 鋼鉄速度の0-10000のmm、 |
|---|---|---|---|
| 表示画面リジェクト（抑制）: | 0から80%のフル スクリーンの高さ | テスト モード: | 脈拍のエコー、二重要素およびによ伝達 |
| MTLVEL(m/s): | 1000～10000m/s | ダイナミックレンジ: | ≥38dB |
| 分解能: | >40dB(5P14) | ||
| ハイライト: | Digital ultrasonic flaw detector,NDT crack inspection tester,Weld diagram flaw detector |
||

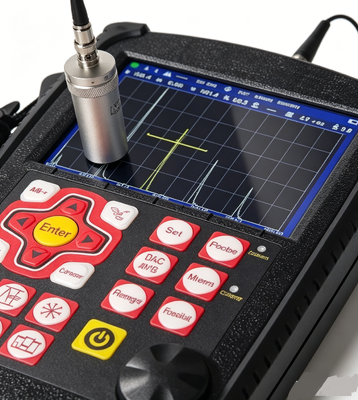

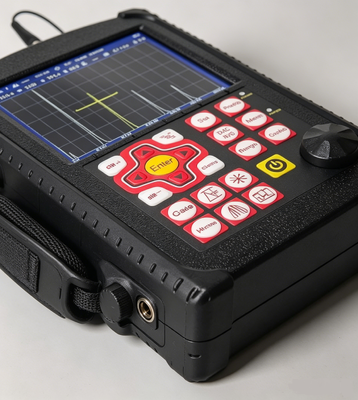

FD-310A Digital Ultrasonic Flaw Detector DAC AVG AWS Weld Diagram 0-10000mm Testing Range PDF Report Output Industrial NDT Crack Inspection Tester
★ User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, AWS, Weld diagram,etc.
★ Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 10-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Crystal clear true-color display. Helpful user interface makes the operation much easier.
★Unlimited USB data storage.,PDF reports output.
Specifications
| Range | 0-10000 mm ,at steel velocity |
| Material Velocity | 1000～10000m/s |
| Pulse Repetition Frequency | 10-2000Hz |
| Dynamic range | ≥38dB |
| Linearity |
Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB |
| Resolving Power | >40dB(5P14) |
| Sensitivity Leavings | >65dB |
| Reject (suppression) | 0 to 80% full screen height,500 independence setup, any criterion can be input freely, we can work in the scene without test block |
| Big memory | 1000 A graph |
| Test Modes | Pulse echo, dual element and thru-transmission |
| Probe Types | Single Straight, Single Angle,Daul Straight, Daul Anlge,Thrugh |
| Gate Monitors | Two independent gates controllable over entire sweep range |
| Units | Inch or millimeter |
| Power Requirement | AC Mains 100-240 VAC, 50-60 Hz |
| Display Delay | -20 to 3400 µs |
| Probe Delay/Zero Offset | 0 to 99.99µs |
| Internal rechargeable Li-ion battery pack | 7.2V at 5600 mAh,10 hours nominal operating time depending on display brightness,4 hours typical recharge time |
| H×W×D(mm) | 240×160×45 (mm) |
| Operating Temperature |
-10℃ to 50℃,Storage Temperature: -30℃ to 50℃ |
| Pulse Energy | 200V, 300V, 400V, 500V selectable |
| Rectification | Positive half wave, negative half wave, full wave, RF System |
| Sensitivity | 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB |
| Transducer Connections | BNC or LEMO |
Functions
Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptanceor rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity .
Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated.
Connectting U-disk,the unit can get unlimited memory,PDF reports out put and Upadte system.
Weld diagram.
There are 15 standards of in the unit.
AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan
display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Alarm:Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.
