商品の詳細:
|
| 正確さ: | + 5% + 2桁 | 操作の環境: | 動作温度: 0oC~50oC;相対湿度: < 85% |
|---|---|---|---|
| 周波数応答: | 加速度ピーク: 10〜1000Hz(0.5dB2桁) 1000〜4000Hz(3dB2桁) 速度RMS: 10Hz < f < 1000Hz、±10% 変位ピーク_ピーク: 10Hz〜 | 画面: | 4桁のLCD,リフレッシュ間隔約0.5秒 |
| モデル: | >100時間連続または4000回測定 | ||
| ハイライト: | Aluminum body vibration pen,Portable motor bearing fault detector,Vibration pen with data hold |
||

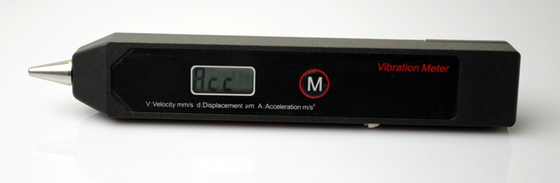

HG6450-3 Aluminum Body Portable Vibration Pen 10-1000Hz 3 Measuring Parameters Data Hold Auto Power Off Motor Bearing Fault Detector
Extremely reliable and potable, low cost instrument specifically designed for on-site maintenance in your plant or workshop. It measures overall vibration level by Velocity RMS, Displacement Peak, and Peak & Acceleration Peak. This easy to use instrument requires little operator training.
It features with one-button operation, holding function and automatic power off.
It is with remote switch and magnet base to avoid handheld problem, get reliable and consistent data.
|
Measurement Parameter and Measurement Range |
Velocity RMS: 1~50mm/s, 10-1000 Hz Displacement Peak_Peak: 7~500 micron, 20-400 Hz Acceleration Peak: 1~50 m/s2 ,10-950 Hz |
|
Accuracy |
±5% ± 2 digits |
|
Frequency response |
Acceleration Peak: 10~1000Hz(0.5dB±2 digits) 1000～4000Hz(3dB±2 digits) Velocity RMS: 10Hz < f < 1000Hz, ±10% Displacement Peak_Peak: 10Hz～1000Hz (0.5dB±2 digits) |
|
Display |
4 digits LCD, refresh interval about 0.5 second |
|
Power supply |
1/2 AA, 3.6V, Operation Current 4-7mA |
|
Battery capacity |
>100 hours continuously or 4000 times measurement |
|
Operation environment |
Operation Temperature: 0oC~50 oC; Relative humidity: < 85% |
|
Dimensions |
160mm x 25mm x 17mm (WxDxH) |
|
Weight |
120g (include batteries) |
|
Case Material |
Aluminum |
n Vibration meter HG6450-3 with accelerometer integrated
n Two testing needles (1 long,1 short)
n Small pocket bag
n Remote switch control unit
n Magnet base
n User’s Manual
n Certificate
