商品の詳細:
|
| 検知範囲: | 0～15m | ゲイン範囲: | 0～120dB |
|---|---|---|---|
| 感度マージン: | >65dB | ダイナミックレンジ: | 38DB |
| 解決: | 42dB(5P14) | 周波数範囲: | 0.2～30MHz |
| 正確性を表示します: | 0.001mm | 反復発火周波数範囲: | 16～25Khz |
| ハイライト: | Multi-channel ultrasonic flaw detection board,IP67 waterproof NDT inspection card,Expandable ultrasonic NDT equipment |
||
HFD-2000 Multi-channel Ultrasonic Flaw Detection Board 0.2-30MHz Frequency IP67 Waterproof 4/8 Channels Expandable Ultrasonic NDT Inspection Card
HFD-2000 ultrasonic automatic detection board can monitor, locate, evaluate and diagnose workpiece damage quickly and conveniently, without damage and accurately. It is widely used in electric power, petrochemical industry, boiler pressure vessel, steel structure, aerospace, railway transportation, automobile, machinery and other fields. It is a necessary system in the non-destructive testing industry. Automatic inspection, C-scan, online flaw detection and thickness measurement, all-weather ultrasonic signal monitoring.
Technical Index:
| detection range | 0 to 15m |
| gain range | 0 to 120dB |
| sensitivity margin | >65dB |
| dynamic range | 38dB |
| Resolution | 42dB (5P14) |
| speed of sound ranges | 100 to 20000m/s |
| frequency range | 0.2 to 30MHz |
| display accuracy | 0.001mm |
| repeated firing frequency range | 16 to 25Khz |
| vertical linear error | <2% |
Main functions:
24/7 monitoring, automatic detection, automatic gain, automatic measurement, automatic capture, automatic alarm, automatic storage, automatic report generation
Gigabit Ethernet transmits waveform data, height data of each gate, alarm data and other various test results and control signals
It can upload all 20K detection results in real time
The number of channels can be freely extended: single board channel, single board 4 channels, 8 channels, multiple boards work together, the number of system channels can be up to hundreds.
Communication: Gigabit Ethernet, 485 or 232, Bluetooth communication
The machine is fully dustproof and waterproof, in line with IP67 standard. Long-term underwater detection can be achieved under customization.
Standard PC automatic detection software can display all channel waveforms and other test results in real time.
Four gates are optional.
Can work with battery, can also plug in all-weather work.
Standard inspection software with multi-channel A-scan waveform, strip chart and C-scan functions and various defect capture, alarm and storage functions.
Support software secondary development, provide secondary development required communication protocols, and basic functions.

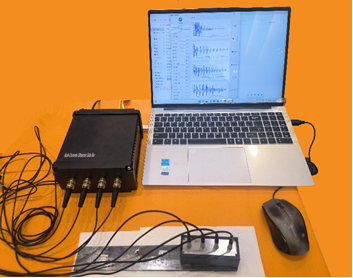

The detection interface is as follows:
