商品の詳細:
|
| 測定範囲: | TE:0.65mm～400.0mm EE:3.00mm～25.00mm | 解決: | 0.01mm (0.001インチ) |
|---|---|---|---|
| 速度範囲: | 1000m/s～9999m/s | メモリ: | 100 個のファイルで 10,000 回の読み取り値 |
| 測定単位: | mm / インチ | 測定レート: | 高速モードでは 2 / 秒および 10/秒 |
| ハイライト: | Portable ultrasonic thickness meter,TFT display thickness tester,Composite material thickness testing equipment |
||

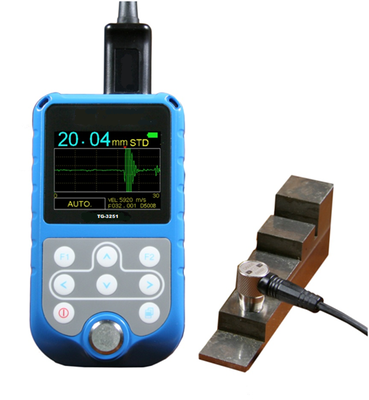

TG-3251 Portable Ultrasonic Thickness Meter Color TFT Display T-E & E-E Measurement Composite Material Thickness Testing Equipment
Features
● A&B Scan and big digits display
● Color TFT display 320×240
● Resolution 0.01 mm, measuring range T-E 0.65mm-400mm depending on different probes and E-E 3-25mm (Thru-coating)
● 5MHz Dual Element probe D5301 is standard delivery, optional 2MHz probe D2012, 5MHz probe D5008, 5MHz high temperature probe D5113, 7.5MHz probe D7006 and 10MHz probe D7004
● Cooperate with probe D1025 for Fiberglass and composite materials
● Automatic probe recognition and Automatic zero calibration
● Automatic measurement and manual-measurement selectable
● Automatically locates the detection point
● Measurement screen is automatic frozen, which make it easy to analyze the
data for the user
● Memory of 100 files X 100 data, transfer data to PC without software,
available for any windows operating systems
● English, Japanese menu language option
|
Technical Specification:
|
|||||||||||||||||||||||||||||||||||||||
|
Standard Delivery ●Main Unit ● Dual elementprobe (D5301 or D1025) ● 75ML Couplant ●Build-in calibration block (Thickness=4mm, Velocity = 5920m/s) ● USB Cable ●Carrying case ●Operating manual ● Calibration Certificate |
|
||||||||||||||||||||||||||||||||||||||
