商品の詳細:
|
| 製品名: | X線欠陥検出器 | 最大浸透厚さ 鉄鋼 (A3): | 50mm |
|---|---|---|---|
| 焦点距離: | 600mm | 曝露時間: | 5分 |
| フィルムの種類: | Agfa D7 | 管の電圧 (kVp): | 150-300 |
| 焦点 mm2: | 2.5×2.5 | 放射の角度: | 40±5° |
| ハイライト: | Industrial NDT X-Ray Machine,Portable X-Ray Flaw Detector,Directional Welding X-Ray Equipment |
||

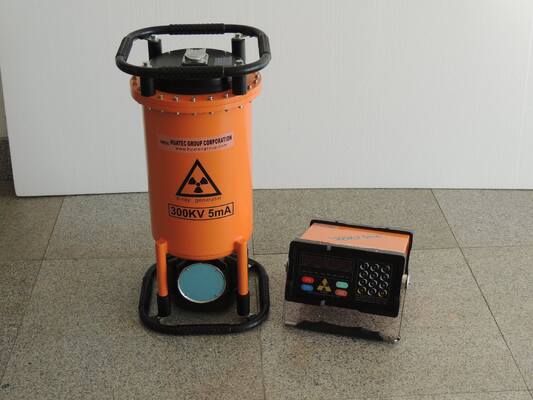

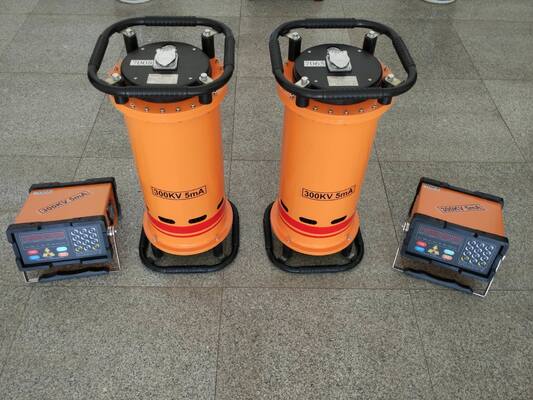

XXG-3005 Industrial NDT Directional Welding X-Ray Machine Portable X-Ray Flaw Detector
Features:
◆Adopting micro-computer control and modular structure, with strong anti-interference ability and high automaticity and reliable performance.
◆Parameter setting, working process and trouble indication will be indicated on the LED screen.
◆Independent aging key is designed for aging the machine conveniently.
◆Radiating time to cooling time is 1:1.
◆The controller can recognize the type of x-ray generator automatically.
◆The water and dust proof color panel and digital sound keyboard are introduced that exposure parameters are promptly and accurately selected.
◆Ensure safety using the instrument, it is installed with overvoltage, under voltage,
over current, under current and over temperature protection device.
◆A unique safety lock is designed that protect the operator from the damage of radiation.
◆Adopting the wider range of KV value, and solve the difficulty problem of short radiographic range.
◆Exposure delay function ------the delay time can be set less than 10 minutes to keep the operator safe from working place.
◆Match with various generator and function reliably.
◆Number of exposure can be accumulated.
(After the unit has been ready, but before press the "ON" key, you can press the "A" key (delay key) three times to check the number of exposure, and press any key to return back.)
◆With the outlet of ray warning lamp and wire connecting terminal of door-machine interlock.
(Door-machine interlock—when the lead door opens, the instrument cut off the high voltage automatically to protect the operator)
Main technical parameters
|
TYPE ITEM |
XXG3005 |
||
|
Max Penetration thickness Steel (A3) |
50mm |
||
|
Focal Distance |
600mm |
||
|
Exposure Time |
5min |
||
|
Film Type |
Agfa D7 |
||
|
Double lead foil Intensifying screen |
0.03 |
||
|
Darkroom Disposal |
20±2℃ |
||
|
Development |
5minutes |
||
|
Blackness |
1.5 |
||
|
Input |
Voltage (V) |
220V±10% 50―60Hz |
|
|
Capacity (KVA) |
3.0 |
||
|
Output |
Tube voltage (KVP) |
150-300 |
|
|
Tube current (mA) |
5 |
||
|
Stability |
±1% |
||
|
X-RAY Tube |
Focus mm2 |
2.5×2.5 |
|
|
Radiation Angle |
40±5° |
||
|
Sensitivity |
k≤1.8% |
||
|
Operation Mode |
Intermittent operation, Radiating time to cooling time is 1:1 |
||
|
X-Ray Controller |
Dimension |
350×290×160 |
|
|
Weight |
11kg |
||
|
Circuit Structure |
Micro-computer control ,Modular structure,Voice prompt |
||
|
X-RAY Generator |
Cooling |
Force air cooling |
|
|
Insulation |
SF6 Gas Insulation |
||
|
Working Pressure |
0.35Mpa-0.45Mpa |
||
|
Dimension |
335×335×700 |
||
|
Weight (kg) |
39.5kg |
||
|
Working Temperature |
-10℃―+40℃ |
||

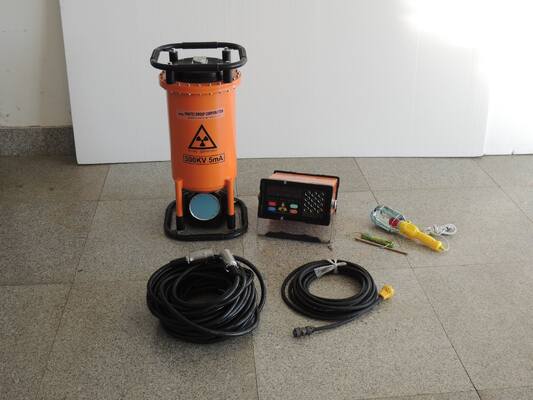

Standard Delivery
|
Directional ceramic X-ray tube |
1 Pcs |
|
|
Generator |
1 Set |
|
|
High voltage joins cable |
1 Pcs |
25 Meters |
|
Controller |
1 Set |
|
|
Power cable |
1 Pcs |
10 Meters |
|
Grounding cable |
1 Pcs |
5 Meters |
|
Accessories |
1 Set |
|
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) |
||
Optional accessories:
Testing platform, IQI/wire penetrameter, lead letter/digits, lead tape, Cassette, lead screen, personal dosimeter, film viewer, densitometer, film developer, dark room light, RT calibration block etc.
