| レセプタータイプ: | TFT/PDマトリックスパネル | シンチレーター: | ゴス |
|---|---|---|---|
| ピクセルピッチ: | 100 μm | エネルギー範囲 (kV): | 40-450kV |
| ハイライト: | portable wireless bendable flat panel,HUATEC 0410-BA flat panel,wireless non-destructive testing equipment |
||

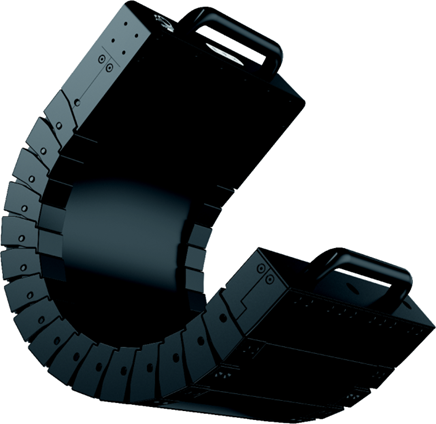

0410-BA It is a portable wireless bendable flat panel detector based on amorphous silicon sensor, suitable for pipeline inspection, security check, power and other fields. Main features 10 × 25 cm² bendable active area 100μm pixel pitch with 16-bit ADC for more image details Robust wired and 5G wireless data interface Up to 180 sec. X-ray exposure window Environmental Temperature -20-50°C (operating)；-20-50°C (storage) Humidity 30-70% RH (non-condensing) Ingress Protection
