商品の詳細:
|
| 測定範囲: | 0～200μm / 0～8ミル | 解決: | 0.1um |
|---|---|---|---|
| ミニ半径 工品: | 凸 2 mm / 凸 4 mm | 測定面積: | 2 mm |
| 試料の最小厚さ: | 0.1 mm | 正確さ: | ± 1 ～ 3%n または ± 2.5 μm |
| 動作条件: | 温度0～40℃、湿度：10～90％RH | ||
| ハイライト: | Portable Eddy Current Thickness Tester,High Precision Coating Thickness Gauge,Micro Workpiece Thickness Tester |
||

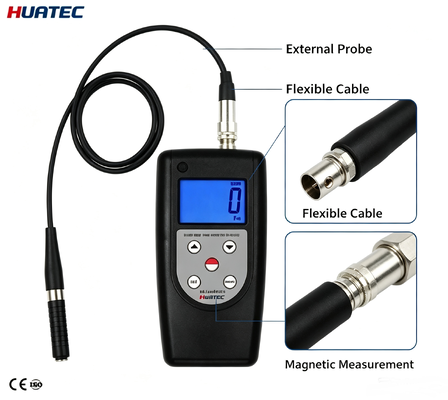

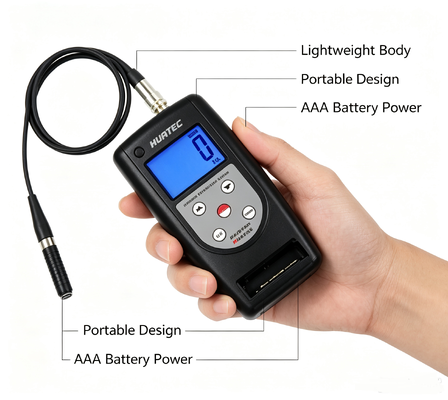

TG-2200CN Portable Eddy Current Coating Thickness Tester 0-200μm High Precision Micro Workpiece Thickness Gauge Applications: The TG-2200CN measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc. Operating Principle Eddy Current (NF) Measuring Range 0~200 um / 0~8 mil Resolution 0.1 um Min. Radius Workpiece convex 2 mm /
