商品の詳細:
|
| 測定範囲: | 0～200μm / 0～8ミル | 解決: | 0.1um |
|---|---|---|---|
| ミニ半径 工品: | 凸 2 mm / 凸 4 mm | 測定面積: | 2 mm |
| 試料の最小厚さ: | 0.1 mm | 正確さ: | ± 1 ～ 3%n または ± 2.5 μm |
| 動作条件: | 温度0～40℃、湿度：10～90％RH | ||
| ハイライト: | magnetic induction coating thickness meter,micro coating thickness meter for curved workpieces,thickness meter for tiny workpieces 0-200μm |
||

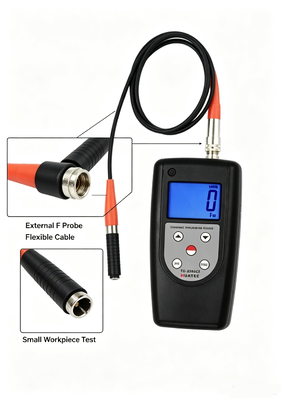

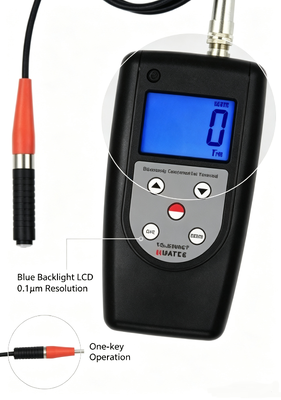

TG‑2200CF Magnetic Induction Micro Coating Thickness Meter for Curved and Tiny Workpieces 0‑200μm Applications : The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
