商品の詳細:
|
| 製品名: | デジタル渦電流の伝導性のメートル | 動作周波数: | 60kHz |
|---|---|---|---|
| 画面を表示します: | モノクロ | 測定範囲: | 6.9％IACS— 110％IACS（4.0 ms/m -64ms/m） |
| ハイライト: | 60KHz digital conductivity meter,eddy current conductivity tester,high precision conductivity meter |
||

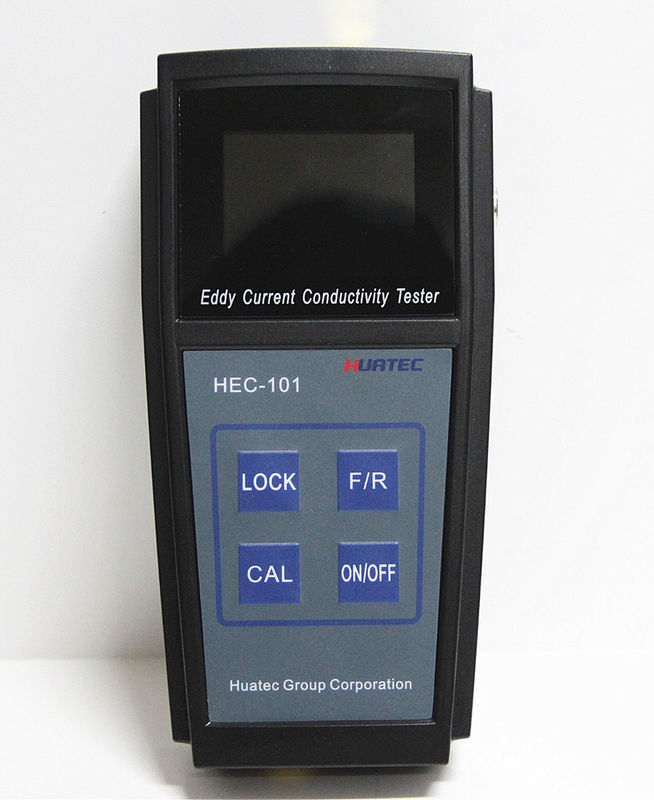

High Precision 60KHz Digital Eddy Current Conductivity Meter
HEC-100 series products use 60 KHz (aviation industry standard) to inspirit, the testing data can be read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations, thus can guarantee the testing accuracy of each measurement. The big typeface and the back light illumination designs are advantageous for users to take the testing data even in low light condition. The products use the high property battery to make sure it keeps more running time, and because of their mini-size, you could easy to carry and to grasp hold. The design of the products are more advantages, such as users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into matching the meter. About HEC-100, two kinds of operate languages (English &Chinese) satisfy different national demand. It can store 1000 measurement data, moreover, users can use USB connect the meter to a PC to create testing report.
Application:
★ Absolute measurement of electrical conductivity of nearly all non-ferrous metals；(Ti – Ag)
★ In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy；
★ Test the conductivity whenthe aluminum have not been oxidized；
★ Measurement the purity of non-ferrous metals；
★ Test the resistivity ofconductivematerials；
★ Analyze thermal properties ofmaterials.
Hand-held eddy current conductivity tester for NF-metals with automatic normalization of the conductivity values to 20°C through temperature sensor.
HEC-101 Technical parameters
| NAME | CONTENT | NOTE | |
| Measurement technology | Eddy current | ||
| Operating frequency | 60KHz | ||
| Display screen | Monochrome | ||
| L*B*H | 180*90*40 mm | ||
| Instrument case | Anti-intense impact, water-proofing polyester | Match the fixed belt the leather protective covering | |
| Weight | 300g | Contain battery | |
| Power supply | High capacity, high performance lithium polymer battery | Not back light illuminate may keep on working about 100 hours. | |
| Measuring range | 6.9%IACS—110%IACS(4.0 MS/m -64MS/m) | ||
| Distinguishing rate | 0.1% IACS | ||
| Measuring accuracy | 0°Cto 45°C ±0.1%IACS-0.3%IACS |
||
| Temperature compensation | Automatic compensation to the value of 20℃ | Automatic compensation function | |
| Normal work environment | Relative humidity | 0～95% | |
| Operating temperature | 0℃～50℃ | ||
| Language | Chinese, English | ||

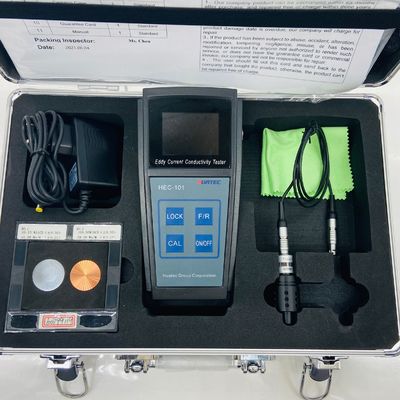

| Fitting | Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter | Conductivity sample installs in the instrument, to verify and guarantee temperature compensation | |
| Probe Diameter | 12mm (Applicable to minimum measuring area diameter at 60KHz is12mm.) |
