商品の詳細:
|
| 頻度: | 1から1280 Hz | 速度: | 40Hzから320Hz +0.5dB +1桁 |
|---|---|---|---|
| 40Hzから320Hz +0.5dB +1桁: | 5mmと8mmの探査機 0~2.0mmの範囲 | 保証: | 12ヶ月 |
| ハイライト: | Digital Vibration Calibrator HG5026,Portable Vibration Meter with warranty,HG5026 Vibration Calibrator for testing |
||

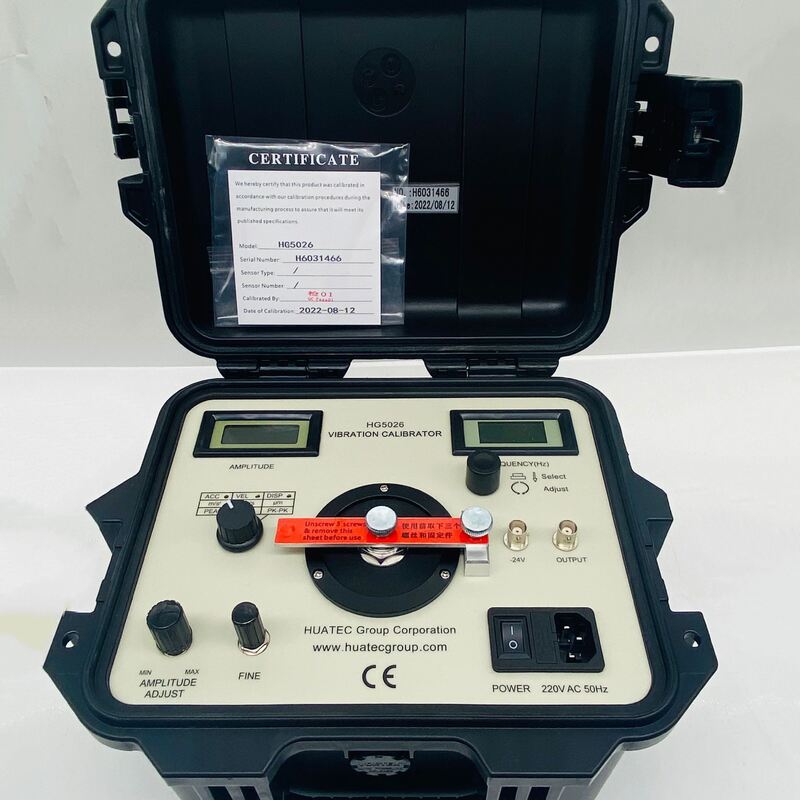

Digital Vibration Calibrator HG5026
HUATEC HG5026 is a portable vibration calibrator designed specifically for on-site and laboratory environments, mainly used for verifying and calibrating various vibration testing equipment.
Main purpose
·Calibration object: capable of calibrating vibration accelerometers, velocity sensors, eddy current displacement sensors, and complete vibration measurement instruments.
·Typical scenarios: Widely used in condition monitoring, predictive maintenance, and quality inspection departments.
working principle
This device is essentially a high-precision reference vibration source. It integrates a signal generator, power amplifier, standard sensor, and vibration table into one.
·Generate standard vibration: The internal system generates a standard sine wave signal, driving the vibration table to produce precise mechanical vibration in the frequency range of 1 to 1280 Hz.
·Dual shaft output: the body structure allows the vibration table to generate horizontal or vertical vibration to adapt to the measurement axis direction of different sensors.

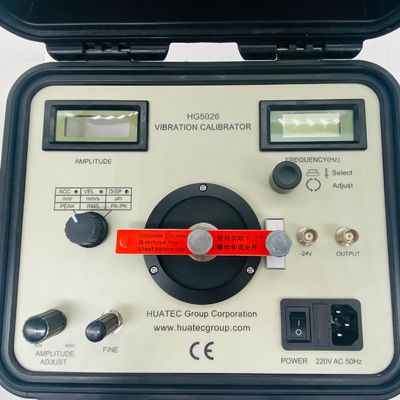

·Value reference: Users can adjust the vibration amplitude through a potentiometer, and the real-time values of acceleration, velocity, and displacement will be directly displayed on the 3 and a half digit digital display screen of the panel as a reference standard for calibration.
·Special feature: It is also equipped with 5mm and 8mm probe kits, specifically designed for calibrating the linearity of eddy current displacement sensors with a range of 0-2.0mm.
|
Wt Freq |
<100g | <250g | <500g | ||||||
| a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | |
| 10Hz | 2.5 | 28 | 1300 | 3.5 | 40 | 1800 | 4 | 45 | 2000 |
| 20Hz | 15 | 85 | 1900 | 10 | 60 | 1300 | 5 | 28 | 640 |
| 40Hz | 60 | 170 | 2000 | 35 | 100 | 1100 | 12 | 35 | 380 |
| 80Hz | 100 | 141 | 800 | 40 | 60 | 320 | 14 | 20 | 110 |
| 160Hz | 75 | 53 | 150 | 35 | 25 | 70 | 12 | 8.5 | 24 |
| 320Hz | 50 | 18 | 25 | 30 | 10 | 15 | 10 | 3.5 | 5 |
| 640Hz | 30 | 5 | 3 | 20 | 3.5 | 2 | 6 | 1 | * |
| 1280Hz | 23 | 2 | * | 10 | 0.9 | * | 5 | 0.4 | * |
Frequency range & accuracy: 1 to 1280 Hz +0.01%
