商品の詳細:
|
| 測定範囲: | 0～6500um（0～0.25インチ） | 解決: | 0.001mm （0.00005"） |
|---|---|---|---|
| 測定面直径: | 42mm (1.65") | 力: | 1.55V酸化銀電池(SR44) |
| バッテリー寿命: | 8 - 12か月 | 相対湿度: | <80> |
| 正確さ: | +-2um | ユニット: | メートル/帝国 |
| ハイライト: | handheld digital roughness tester,portable surface profile gauge,digital surface roughness tester with warranty |
||

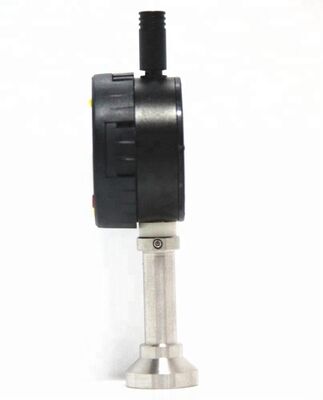

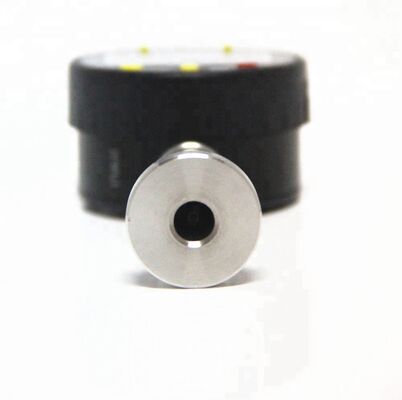

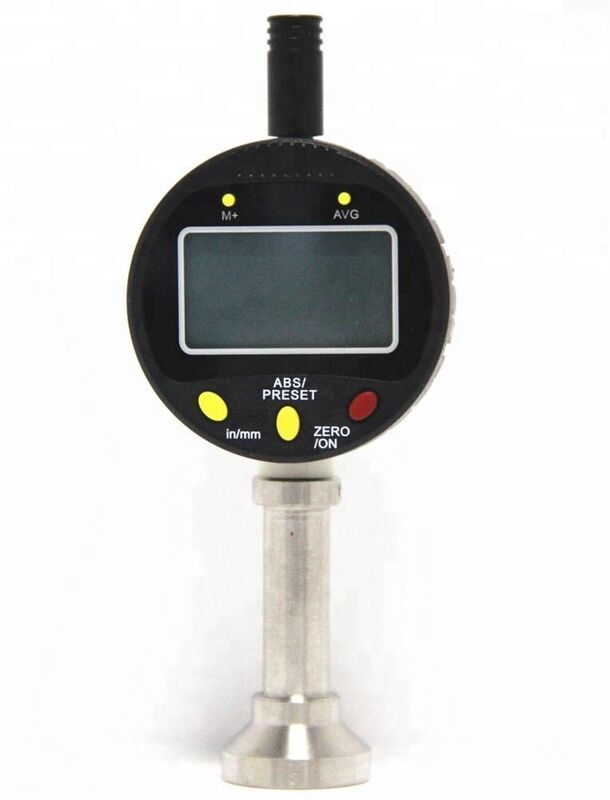

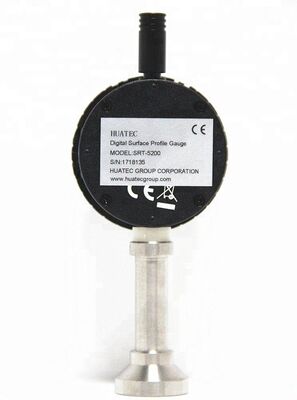

Handheld Digital Surface Profile Gauge Surface Roughness Tester
Applications:
Enables quick assessment of surface condition prior to coating
It works on grit sand shot blasted and saw cut surfaces
The small size (42 mm diameter) of this surface profile gauge makes it easy to use and easy to balance on the surface
Its design permits accuracies equivalent to an electronic surface trace
Gives maximum peak to average valley height
Available with metric and imperial units.
This gauge can also measure the depth of pits, cracks, craters and scratches of the outer (and in some cases the inside) surfaces of steel structures, pipes and concrete
Standard delivery:
Main unit 1pc
Carrying case 1pc
Certificate 1pc
English Manual 1pc
Speficications:
Measuring Range: 0 - 6500um (0 - 0.25")
Confirm to standrad ASTM D4417B
Resolution: 0.001mm (0.00005")
Gauge face diameter: 42mm (1.65")
Power: 1.55V silver oxide battery (SR44)
Battery Life: 8 - 12 months
Working Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -10 to +60C (14 to 140F)
Relative Humidity: <80%
Accuracy: +-2um
Unit: metric/imperial
Product Details:
| Place of Origin: | China |
| Brand Name: | HUATEC |
| Certification: | CE ISO |
| Model Number: | SRT5200 |
| Resolution: | 0.001mm (0.00005") |
| Measuring Range: | 0 - 6500um (0 - 0.25") |
| Unit: | metric/imperial |
