商品の詳細:
|
| 測定範囲: | 0.01μSv/h～500μSv/h | エネルギー反応: | 40Kev3Mev |
|---|---|---|---|
| 感度: | 350cps/μSv/h | 相対的な誤差、それ以上ではない: | ±15％ |
| ハイライト: | NaI scintillation radiation detector,high sensitivity gamma probe,X gamma radiation monitoring |
||

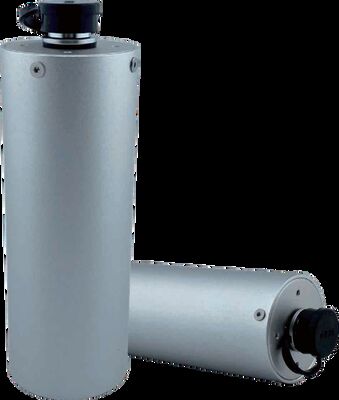

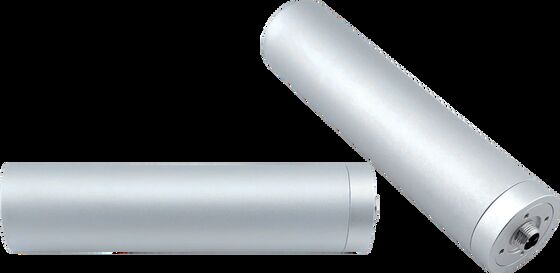

FJ-3025 High Sensitivity X Gamma Radiation Monitoring Probe NaI Scintillation Detector
Features:
Real-time measurement of γ and X-ray radiation in the workplace
Features a 485 communication interface and supports Modbus protocol
Compatible with host control equipment or upper-level monitoring software
High-sensitivity NaI scintillator detector
Technical Specifications
|
Measurement range |
0.01μSv/h～500μSv/h |
|
Energy response |
40keV～3MeV |
|
Sensitivity |
350cps/ μSv/h |
|
Relative error, not more |
±15% |
|
Response time |
≤1s(10μSv/h) |
|
Operating temperature range |
-20℃～+50℃ |
|
Relative humidity |
≤98％ |
|
Supply voltage |
DC 7V～24V |
|
Static power consumption |
12V/ 5mA |
|
Dimensions |
Diameter 45mm, Length 120mm (excluding plug height) |
|
Weight |
0.6kg |
Delivery kit:
Probe, data communication protocol or specialized data analysis software
