| 出力電圧: | 0.6kV～50KV |
|---|

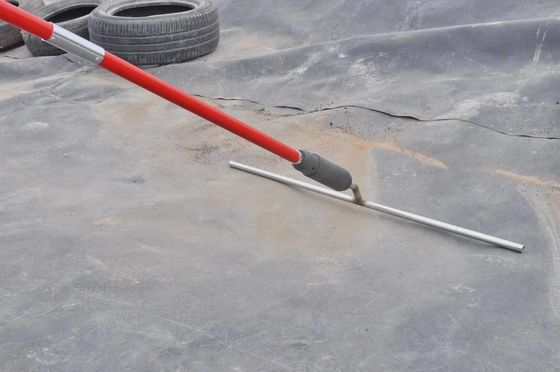

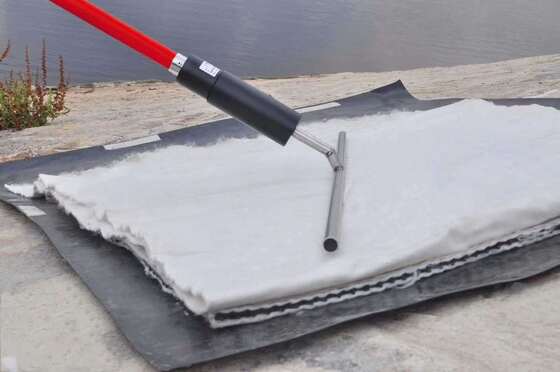

The Geomembrane Leak Detector HD-107 represents the latest generation of geomembrane leak detection equipment, incorporating extensive user feedback and field application experience. This optimized system features enhanced core components that deliver output voltages up to 50 kV, with adjustable sensitivity to match geomembrane thickness, conductivity, and soil conditions for precise leak detection.
The upgraded system offers improved linear output, enhanced leak detection efficiency, and extended battery capacity (4400mAh) for prolonged field operation. With excellent portability and user-friendly operation, the HD-107 provides reliable performance in demanding environmental conditions.
| Parameter | Specification |
|---|---|
| Output High Voltage | 0.6kV ~ 50kV (stepless continuous adjustable) |
| Detection Thickness | 0.1~35mm (affected by soil environment) |
| Voltage Display | Direct indication of output high voltage value |
| Sensitivity | Variable sensitivity control |
| Battery | 12V/2200mAh |
| Power Consumption | ≤5W |
| Main Unit Dimensions | 220 × 130 × 88 mm |
Primary Applications: Floor waterproofing, pond waterproofing, pit leakage detection, river dam waterproofing, and construction waterproofing detection.
